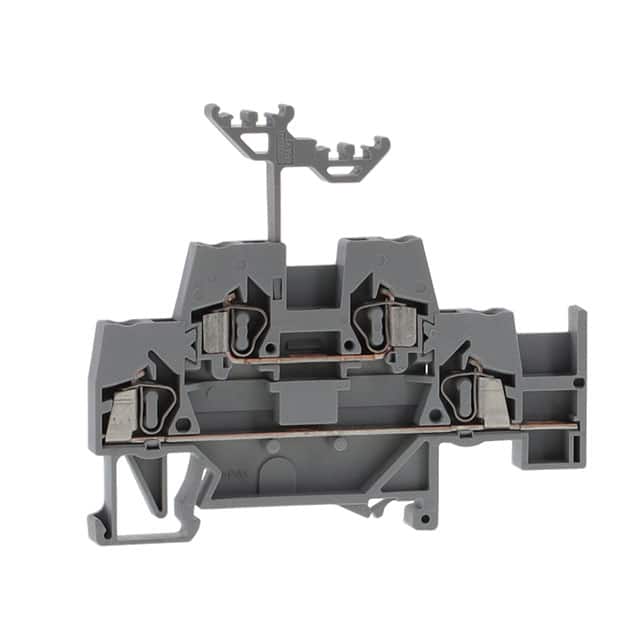

280-520 Wago 280-520 is a double-deck feed-through terminal block with 4 clamping units across 2 levels. It features CAGE CLAMP® push-in spring connection for conductors from 0.08 to 2.5 mm² and is rated at 20 A and 500 V per IEC/EN 60947-7-1.
Mfr Part #:

280-520

Available from 1 distributors
Mfr Name: Wago Corporation
Wago Corporation
Wago 280-520 is a double-deck feed-through terminal block with 4 clamping units across 2 levels. It features CAGE CLAMP® push-in spring connection for conductors from 0.08 to 2.5 mm² and is rated at 20 A and 500 V per IEC/EN 60947-7-1.
✓ Total Stock: 137 pcs
$ Price Range: $5.82 - $12.65

280-520 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
137 pcs
On Request
137 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

280-520 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Tape & Reel
Terminal
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

280-520 Description

Short technical summary and product information.

The Wago 280-520 is a double-deck feed-through terminal block from the 280 Series, designed for DIN-rail mounting on 35 x 15 mm and 35 x 7.5 mm rails. It provides 4 clamping units across 2 levels, enabling efficient wiring in space-constrained control cabinets.



This terminal block uses CAGE CLAMP® spring pressure connection technology for fast, maintenance-free wiring. It accepts solid and stranded copper or aluminum conductors from 0.08 mm² to 2.5 mm² without requiring ferrule crimping. Front-entry wiring simplifies installation and inspection.



Electrically, the 280-520 is rated at 20 A nominal current and 500 V nominal voltage per IEC/EN 60947-7-1, with a rated impulse withstand voltage of 6 kV (overvoltage category III, pollution degree 3). Power loss per pole is 0.532 W at 20 A. The terminal block is gray and supports connection of copper and aluminum conductors (aluminum requires WAGO Aluminum Contact Paste 249-130 for solid conductors up to 4 mm²/12 AWG).

280-520 Quick Information

Product Type: Double-deck feed-through terminal block
Series: 280
Canonical Name: Double-deck feed-through terminal block, 4 clamping units, 2 levels, CAGE CLAMP® push-in spring connection, 0.08-2.5 mm², gray, for DIN-rail 35 x 15 and 35 x 7.5
Subcategory: DIN-rail terminal block

280-520 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

280-520 Estimated Pricing

Qty Low High
1+ $12.65 $12.65
10+ $8.98 $8.98
25+ $7.96 $7.96
50+ $7.34 $7.34
100+ $6.84 $6.84
250+ $6.33 $6.33
500+ $6.04 $6.04
1,000+ $5.82 $5.82

Estimated market price range - modelled values for guidance only, not live distributor offers.

280-520 Features

  • Double-deck feed-through terminal block with 4 clamping units.
  • CAGE CLAMP® push-in spring connection for fast wiring.
  • Rated 20 A and 500 V per IEC/EN 60947-7-1.
  • Accepts conductors from 0.08 to 2.5 mm².
  • Front-entry wiring for easy installation and inspection.

280-520 Applications

  • Ideal for control cabinet wiring and junction boxes.
  • Used in industrial automation and process control systems.
  • Suitable for building infrastructure and power distribution.
  • Supports copper and aluminum conductor connections.
  • Space-saving double-deck design for high-density wiring.

280-520 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the Wago 280-520 terminal block?

The nominal current rating is 20 A per IEC/EN 60947-7-1.

What is the voltage rating of the Wago 280-520?

The nominal voltage rating is 500 V per IEC/EN 60947-7-1.

What wire sizes does the Wago 280-520 accept?

It accepts conductors from 0.08 mm² to 2.5 mm².

How many positions does the Wago 280-520 have?

It has 4 positions (clamping units) across 2 levels.

What type of connection technology does the Wago 280-520 use?

It uses CAGE CLAMP® spring pressure push-in connection technology.

What is the mounting type for the Wago 280-520?

It mounts on DIN-rails of 35 x 15 mm and 35 x 7.5 mm.
