| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clamping Units | |
| Color | |
| Connectable Conductor Materials | |
| Connection Technology | |
| Current | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Overvoltage Category | |
| Pollution Degree | |
| Power Loss per Pole | |
| Rated Impulse Withstand Voltage | |
| Resistance | |
| Strip Length | |
| Terminal | |
| Termination Style | |
| Total Potentials | |
| Type | |
| Voltage | |
| Wire Gauge or Range | |
| Wire Orientation | |
| Wiring Direction |

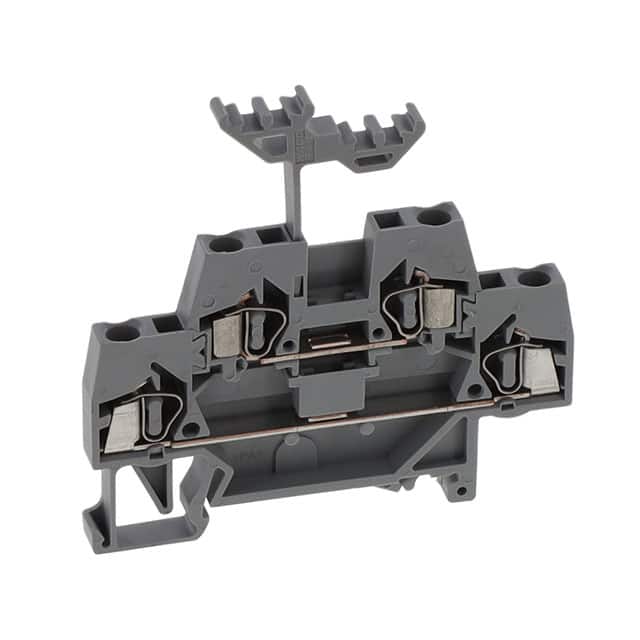

The Wago 280-519 is a double-deck feed through terminal block belonging to the 280 Series. Designed for DIN-rail mounting (35 x 15 and 35 x 7.5 mm), it offers front-entry wiring for convenient connection access. The terminal block utilizes CAGE CLAMP push-in spring connection technology, allowing solid and stranded conductors to be connected without ferrule preparation.
Electrically, the 280-519 is rated for 500 V and 20 A per IEC/EN 60947-7-1, with a rated impulse withstand voltage of 6 kV. Power loss per pole is 0.532 W. It accommodates wire sizes from 0.08 to 2.5 mm² (copper or aluminum), with a strip length of 8-9 mm. The product supports overvoltage category III and pollution degree 3.
Mechanically, the block features 4 clamping units across 2 levels, with a 5.0 mm pitch. The gray housing is suitable for industrial control environments. Connector materials include copper and aluminum (aluminum requires contact paste 249-130). The termination style is Push In, Spring (CAGE CLAMP), ensuring vibration-resistant and maintenance-free connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.87 | $11.87 |
| 10+ | $8.42 | $8.42 |
| 25+ | $7.46 | $7.46 |
| 50+ | $6.87 | $6.87 |
| 100+ | $6.40 | $6.40 |
| 250+ | $5.92 | $5.92 |
| 500+ | $5.64 | $5.64 |
| 1,000+ | $5.43 | $5.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
5.0 mm.
20 A per IEC/EN 60947-7-1.
500 V per IEC/EN 60947-7-1.
On DIN-rail 35 x 15 and 35 x 7.5 mm.
Wire sizes from 0.08 to 2.5 mm².
Push In, Spring (CAGE CLAMP®).
