| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Conductor Material | |
| Current | |
| Depth | |
| Height | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Resistance | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Width | |
| Wire Gauge or Range |

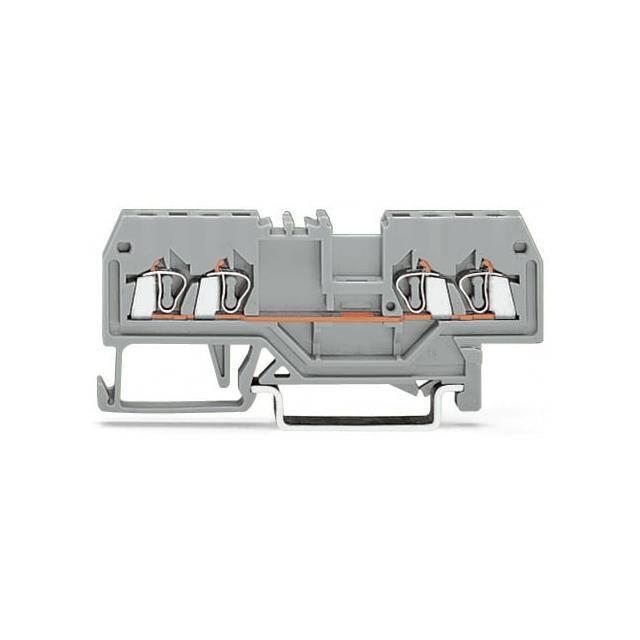

The Wago 279-835 is a 4-conductor through terminal block from the 279 series, designed for DIN-35 x 15 and DIN-35 x 7.5 rails. It features the proven CAGE CLAMP® spring connection technology for maintenance-free wiring without special tools or ferrule preparation.
Accepting solid and fine-stranded copper conductors from 0.08 to 1.5 mm² (28-16 AWG), the terminal block is rated for 18A continuous current and 800V nominal voltage per IEC/EN 60947-7-1. The black housing measures 4 mm wide, 73 mm high, and 31.5 mm deep, with front-entry wiring and a required strip length of 8-9 mm.
This terminal block is suitable for classic through-wiring or distributing potential in industrial and building installations. It provides 4 clamping units on a single potential level with center marking for easy identification.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.01 | $6.01 |
| 10+ | $4.26 | $4.26 |
| 25+ | $3.74 | $3.74 |
| 50+ | $3.42 | $3.42 |
| 100+ | $3.16 | $3.16 |
| 250+ | $2.88 | $2.88 |
| 500+ | $2.73 | $2.73 |
| 1,000+ | $2.60 | $2.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions (clamping units) on a single level.
The rated current is 18 A per IEC/EN 60947-7-1.
Rated voltage is 800 V (overvoltage category III, pollution degree 3).
It mounts on DIN-35 rail (35 x 15 mm and 35 x 7.5 mm).
Solid and fine-stranded copper conductors from 0.08 mm² to 1.5 mm² (28-16 AWG).
CAGE CLAMP® spring connection (push-in, spring termination).
It is black.
