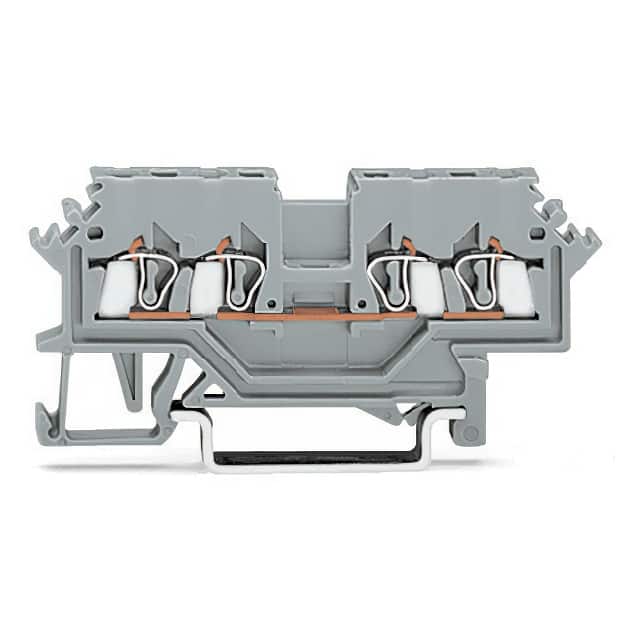

279-621 Wago 279-621 is a 4-conductor through terminal block with CAGE CLAMP spring connection, rated 18A / 800V per IEC and 10A / 600V per UL/CSA. Accepts 0.08-1.5 mm² copper conductors.
Mfr Part #:

279-621

Available from 1 distributors
Mfr Name: Wago Corporation
Wago Corporation
Wago 279-621 is a 4-conductor through terminal block with CAGE CLAMP spring connection, rated 18A / 800V per IEC and 10A / 600V per UL/CSA. Accepts 0.08-1.5 mm² copper conductors.
✓ Total Stock: 51 pcs
$ Price Range: $3.30 - $7.49

279-621 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
51 pcs
On Request
51 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

279-621 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Conductor Material
Current
Height
Lead Style
Mounting Type
Number of Levels
Number of Positions
Resistance
Terminal
Termination Style
Type
Voltage
Width
Wire Gauge or Range
View Similar Products (0)

279-621 Description

Short technical summary and product information.

The Wago 279-621 is a 4-conductor through terminal block from the 279 series, designed for DIN-rail mounting on 35 x 15 mm or 35 x 7.5 mm rails. It features CAGE CLAMP spring clamp termination for fast, maintenance-free wiring of solid and fine-stranded copper conductors from 0.08 to 1.5 mm² (28-16 AWG).



Electrical ratings per IEC/EN 60947-7-1 are 18 A rated current and 800 V nominal voltage, with an 8 kV rated impulse withstand voltage. UL 1059 and CSA 22.2 No 158 approvals provide 600 V / 10 A ratings for Use Group C. The block has a power loss of 0.5929 W per pole at rated current.



With a width of 4 mm, height of 68 mm, and depth of 27 mm from the DIN rail, this compact feed-through terminal block is suitable for industrial and building wiring applications. Front-entry wiring and side marking simplify installation and identification.

279-621 Quick Information

Product Type: Through Terminal Block
Series: 279
Canonical Name: Wago 279-621 4-Conductor Through Terminal Block
Subcategory: Feed Through

279-621 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

279-621 Estimated Pricing

Qty Low High
1+ $7.49 $7.49
10+ $5.31 $5.31
25+ $4.67 $4.67
50+ $4.28 $4.28
100+ $3.96 $3.96
250+ $3.64 $3.64
500+ $3.45 $3.45
1,000+ $3.30 $3.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

279-621 Features

  • Rated 18 A / 800 V per IEC/EN 60947-7-1.
  • CAGE CLAMP spring clamp termination.
  • Accepts 0.08-1.5 mm² copper conductors.
  • UL/CSA rated 600 V / 10 A.
  • Compact 4 mm width for DIN-rail mounting.

279-621 Applications

  • Industrial control panel wiring.
  • Building automation and distribution.
  • Feed-through connections in junction boxes.
  • Wiring for machinery and equipment.

279-621 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the rated current of the Wago 279-621?

The rated current is 18 A per IEC/EN 60947-7-1 and 10 A per UL 1059 / CSA 22.2 No 158 (Use Group C).

What is the voltage rating of the 279-621?

The nominal voltage is 800 V per IEC/EN 60947-7-1 and 600 V per UL 1059 / CSA 22.2 No 158 (Use Group C).

What wire sizes does the 279-621 accept?

It accepts solid and fine-stranded copper conductors from 0.08 to 1.5 mm² (28-16 AWG).

How is the Wago 279-621 mounted?

It mounts on DIN-35 rail (35 x 15 mm or 35 x 7.5 mm).

What termination technology does the 279-621 use?

It uses CAGE CLAMP spring clamp termination for fast, tool-free wiring.
