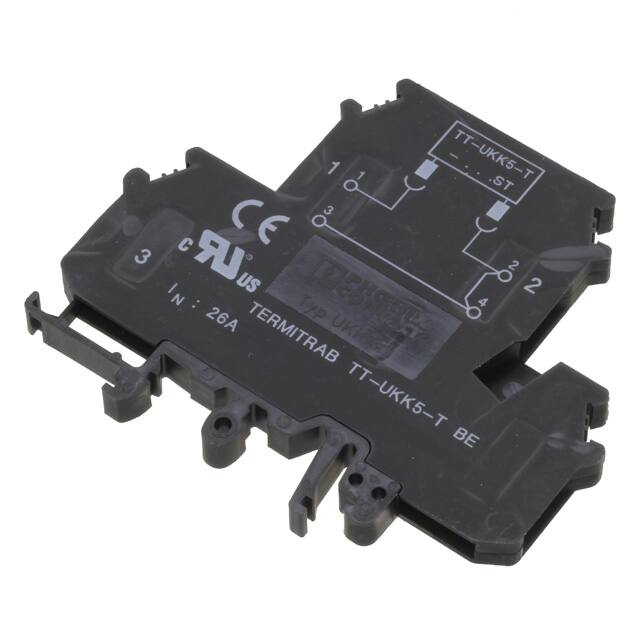

The Phoenix Contact 2788401 is a TERMITRAB base element with a universal foot and screw connections on both sides. This component is suitable for use in the signal circuits of electronic controllers.
Key technical specifications include a nominal current rating of 26 A and the ability to accommodate conductor cross-sections ranging from 0.2 mm² to 4 mm² (24 to 12 AWG). The housing is made of PA material with an UL 94 V2 flammability class. The base element has a length of 80 mm, a width of 6.2 mm, and a height of 87.5 mm.
Mounting is facilitated via a standard DIN rail or G-profile rail. The connection types for both input and output are screw terminal blocks, with a stripping length of 8 mm required for wiring. The color of the unit is black.
This product is classified under various eCl@ss and ETIM codes, indicating its role as a terminal block accessory. It is designed for reliable integration into control systems.
26 A.
Stranded and solid conductors from 0.2 mm² to 4 mm² (24 AWG to 12 AWG).
DIN rail or G-profile rail.
PA (polyamide) housing with UL 94 V2 flammability class.
8 mm.
80 mm length, 6.2 mm width, 87.5 mm height.
Yes, it is designed for use with TERMITRAB and circuit breakers.
