| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Features | |
| Height | |
| Housing Material | |
| Industrial Grade | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Terminal | |
| Termination Style | |
| Type | |
| Width | |
| Wire Gauge or Range |

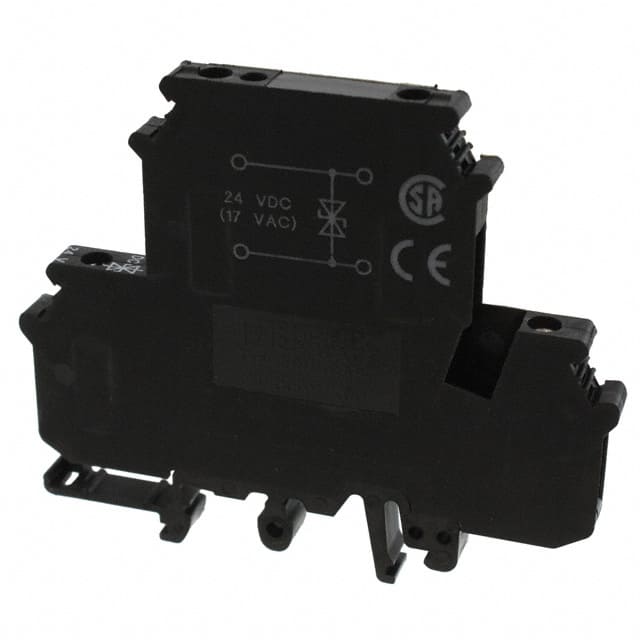

The Phoenix Contact 2788090 is a double-level modular terminal block featuring an integrated suppressor diode for surge protection between levels. It is designed for DIN rail or G-profile rail mounting and comes in a compact 6.2 mm width housing made of PA (polyamide) with UL 94 V2 flammability rating.
Electrical specifications include a nominal voltage of 24 V DC (max continuous 28 V DC / 20 V AC), nominal current of 16 A, and surge current handling of 169 A (8/20 µs). The response time is ≤ 1 ns, and capacitance between cores is ≤ 1.6 nF typical. The terminal block meets IEC category C3 and VDE requirement class C3.
Mechanical features include screw termination, M3 screw thread with 0.5 Nm tightening torque, and wire range 24-12 AWG (0.2-4 mm² stranded/solid). The operating temperature range is -40 °C to 85 °C with IP20 protection. Standard package quantity is 50 pieces in a closed housing.
4 positions.
16 A nominal.
24 V DC nominal, maximum continuous 28 V DC.
DIN rail or G-profile rail.
169 A (8/20 µs).
≤ 1 ns.
-40 °C to 85 °C.
