| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
141 pcs
|
141 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AWG Range | |
| Color | |
| Current | |
| Flammability Rating | |
| Insulating Material | |
| Lead Style | |
| Maximum Load Current | |
| Mounting Type | |
| Nominal Cross Section | |
| Number of Connections | |
| Number of Levels | |
| Number of Positions | |
| Open Side Panel | |
| Overvoltage Category | |
| Pollution Degree | |
| Rated Current | |
| Rated Surge Voltage | |
| Rated Voltage | |
| SVHC Present | |
| Standard Package Quantity | |
| Temperature Index | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Weight | |
| Width | |
| Wire Cross Section Range | |
| Wire Gauge or Range |

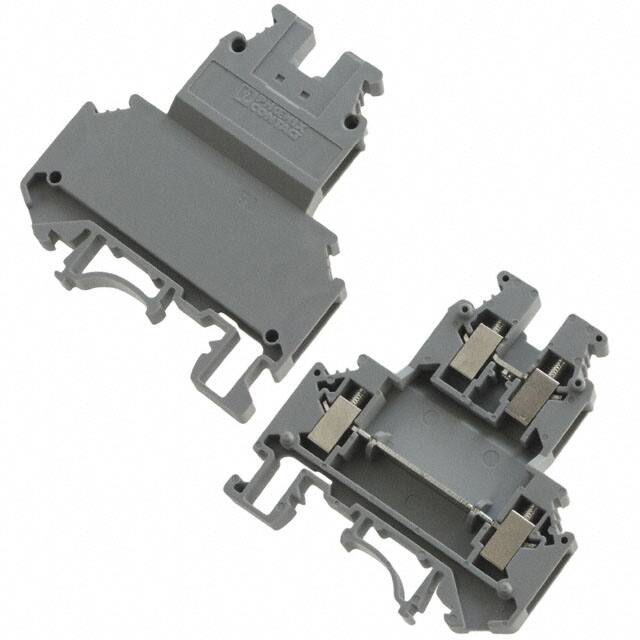

The Phoenix Contact 2774017 is a double-level feed through terminal block designed for industrial wiring applications. It features two levels with four total connections and uses a reliable screw termination method. The block accepts wire cross sections from 0.2 to 4 mm² (24-12 AWG) with a nominal cross section of 4 mm².
Rated for 32 A maximum load current and 500 V nominal voltage, this terminal block meets the requirements of IEC 60947-7-1. It offers a rated surge voltage of 6 kV and is suitable for overvoltage category III with pollution degree 3 environments.
Constructed with PA insulating material rated UL 94 V0 flammability class, the block has a temperature index of 130 °C. It mounts onto DIN rails of types NS 35/7.5, NS 35/15, and NS 32. The gray housing includes an open side panel for flexible arrangement.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.44 | $6.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal voltage is 500 V.
Rated current is 32 A at nominal conditions.
It accepts wire cross sections from 0.2 to 4 mm² (24 to 12 AWG).
It has 4 connections across 2 levels.
It mounts on DIN rails NS 35/7.5, NS 35/15, or NS 32.
The PA insulating material is rated UL 94 V0.
