| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
589 pcs
|
589 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-04-29 00:15:12 | |
|
364 pcs
|
364 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
37 pcs
|
37 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| DC Resistance (DCR) (Max) | |
| Height (Max) | |
| Impedance @ Frequency | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Width |

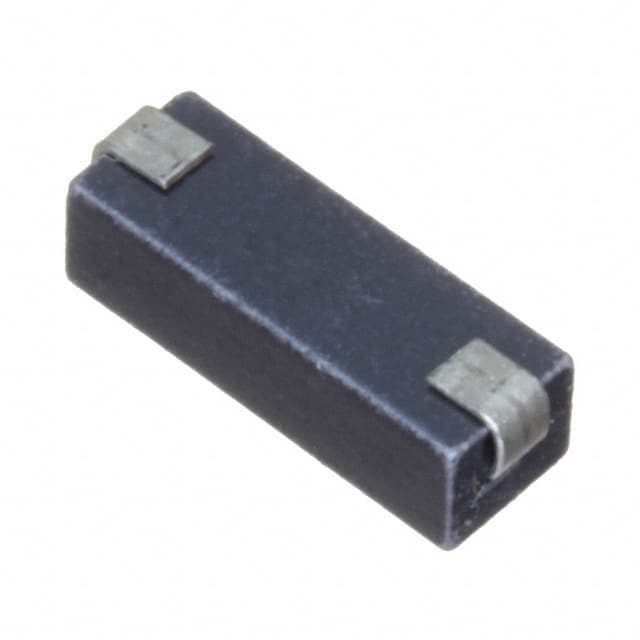

The Fair-Rite 2773021447 is a surface-mount ferrite bead designed for EMI suppression in electronic circuits. It provides a nominal impedance of 25 Ω at 100 MHz, with a maximum DC resistance of 1.2 mΩ. The component is a single-line ferrite bead, suitable for filtering high-frequency noise on power or signal lines.
This ferrite bead is housed in a 2-SMD J-Lead package with dimensions of 9.60 mm length and 3.05 mm width, and a maximum height of 3.05 mm. It is designed for surface-mount assembly, offering a compact solution for board-level filtering. The operating temperature range is -55°C to 125°C, making it suitable for a wide range of environments.
The low DC resistance helps minimize power loss, while the impedance at 100 MHz provides effective attenuation of high-frequency noise. This component is commonly used in power supply lines, signal lines, and other applications where EMI filtering is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.43 | $0.43 |
| 10+ | $0.30 | $0.30 |
| 25+ | $0.26 | $0.26 |
| 50+ | $0.24 | $0.24 |
| 100+ | $0.21 | $0.21 |
| 250+ | $0.18 | $0.18 |
| 500+ | $0.16 | $0.16 |
| 1,000+ | $0.12 | $0.12 |
| 2,800+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 25 Ω at 100 MHz.
The maximum DC resistance is 1.2 mΩ.
The operating temperature range is -55°C to 125°C.
It comes in a 2-SMD J-Lead package.
Yes, it is surface mount.
It has 1 line.
