| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
86 pcs
|
86 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request | |
|
75 pcs
|
75 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Impedance @ Frequency | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Tape & Reel | |
| Termination Style | |
| Width |

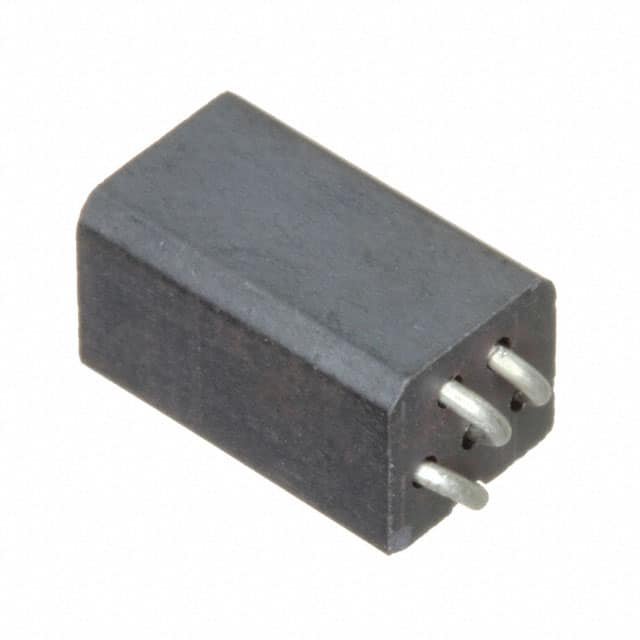

The Fair-Rite 2744555577 is a single-line ferrite bead designed for signal line filtering applications. It offers a nominal impedance of 724 Ω at 100 MHz, effectively suppressing high-frequency noise.
This component features a maximum DC resistance of 6.2 mOhm, ensuring minimal power loss. It is rated for an operating temperature range of -55°C to 125°C, suitable for harsh environments.
Packaged in a 2-SMD, J-Lead surface mount configuration, the bead measures 11.00 mm in length and 5.00 mm in width, with a maximum height of 5.00 mm. The J-Lead termination style simplifies PCB design for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.74 | $0.74 |
| 10+ | $0.52 | $0.52 |
| 25+ | $0.45 | $0.45 |
| 50+ | $0.40 | $0.40 |
| 100+ | $0.35 | $0.35 |
| 250+ | $0.30 | $0.30 |
| 500+ | $0.26 | $0.26 |
| 1,000+ | $0.26 | $0.26 |
| 9,000+ | $0.26 | $0.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 724 Ω at 100 MHz.
The maximum DC resistance is 6.2 mOhm.
It has 1 line.
The package is 2-SMD, J-Lead.
The operating temperature range is -55°C to 125°C.
Surface mount.
It is listed as RoHS3 Compliant, but this is unverified.
