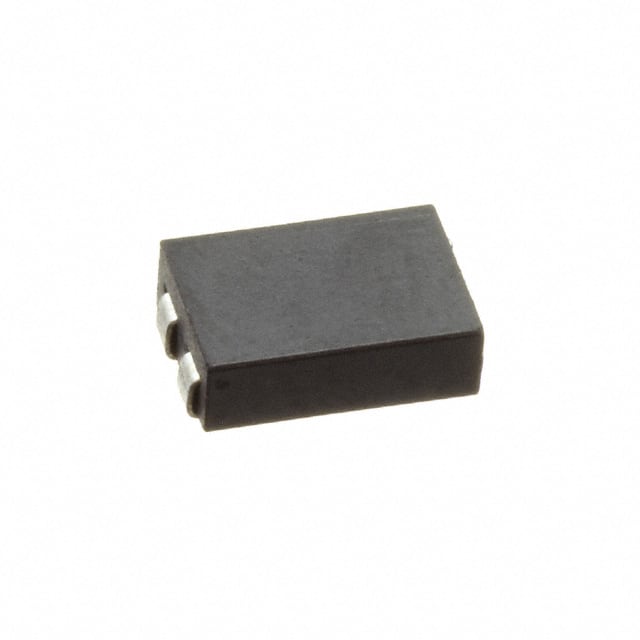

2744045447 Fair-Rite 2744045447 is a 2-line surface mount common mode choke rated for 5A with 60 Ohm impedance at 100 MHz. It comes in a horizontal, 4 PC pad package.
Mfr Part #:

2744045447

Available from 5 distributors
Mfr Name: Fair-Rite Products Corp.
Fair-Rite Products Corp.
Fair-Rite 2744045447 is a 2-line surface mount common mode choke rated for 5A with 60 Ohm impedance at 100 MHz. It comes in a horizontal, 4 PC pad package.
✓ Total Stock: 17,052 pcs
$ Price Range: $0.19 - $0.58

2744045447 Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2744045447 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Filter Type
Height (Max)
Impedance @ Frequency
Mounting Type
Number of Lines
Operating Temperature
View Similar Products (0)

2744045447 Description

Short technical summary and product information.

The Fair-Rite 2744045447 is a surface mount common mode choke designed for signal line filtering applications. It features two lines and provides a nominal impedance of 60 Ohms at 100 MHz, making it suitable for suppressing common mode noise on data or power lines.



This component is rated for a maximum current of 5A and has a maximum DC resistance of 1.4 mOhm, ensuring minimal power loss in the circuit. It is housed in a horizontal, 4 PC pad package with dimensions of 5.60mm x 8.90mm and a maximum height of 3.05mm.



The choke operates over a wide temperature range of -55°C to 125°C, allowing for use in demanding environments. Its surface mount design facilitates automated assembly processes.

2744045447 Quick Information

Product Type: Common Mode Choke
Series: 44
Canonical Name: Fair-Rite 2744045447 Common Mode Choke, 5A, 60 Ohm @ 100 MHz, Surface Mount
Subcategory: Signal Line Filter

2744045447 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

2744045447 Estimated Pricing

Qty Low High
1+ $0.58 $0.58
10+ $0.40 $0.40
25+ $0.36 $0.36
100+ $0.29 $0.29
250+ $0.27 $0.27
500+ $0.24 $0.24
1,000+ $0.19 $0.19
9,600+ $0.19 $0.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

2744045447 Features

  • Surface mount common mode choke for signal lines.
  • Rated for 5A maximum continuous current.
  • 60 Ohm impedance at 100 MHz nominal.
  • Low 1.4 mOhm maximum DC resistance.
  • Operates from -55°C to 125°C temperature range.

2744045447 Applications

  • Used for common mode noise filtering on signal lines.
  • Suitable for power line filtering in DC circuits.
  • Ideal for high-reliability industrial and automotive applications.

2744045447 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the 2744045447?

-55°C to 125°C

What is the maximum current rating of this common mode choke?

5A

What is the impedance of the 2744045447 at 100 MHz?

60 Ohms

What is the package type for this component?

Horizontal, 4 PC Pad

What is the mounting type for the 2744045447?

Surface Mount

How many lines does this common mode choke have?

2

What is the maximum DC resistance of the 2744045447?

1.4 mOhm
