| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,390 pcs
|
2390 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
98 pcs
|
98 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Impedance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature |

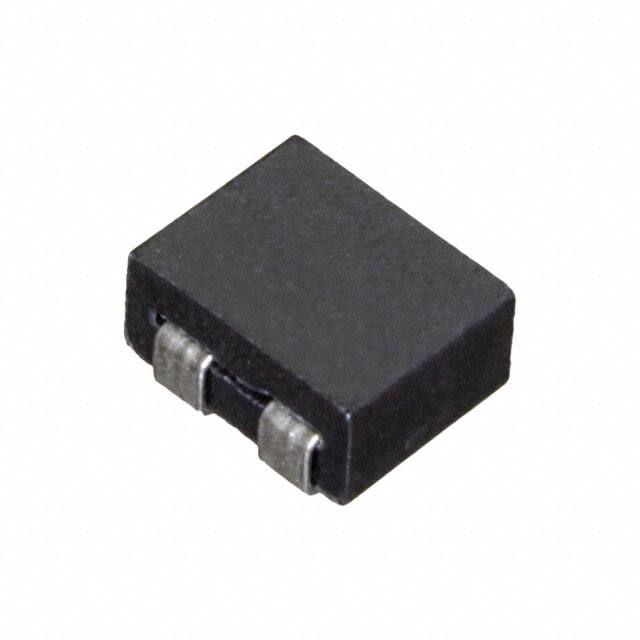

The Fair-Rite 2744041447 is a surface mount common mode choke designed for signal line filtering applications. It features a nominal impedance of 33 Ω at 100 MHz and a maximum current rating of 5A. The DC resistance is a low 1.1 mOhm, minimizing power loss. The component operates over a wide temperature range of -55°C to 125°C, making it suitable for harsh environments.
The choke is housed in a Horizontal, 4 PC Pad package with dimensions of 5.60mm x 5.00mm x 3.05mm. It is designed for surface mount assembly, facilitating automated manufacturing. The 2-line configuration provides common mode noise suppression in differential signal paths.
Typical applications include noise filtering in power lines, DC/DC converters, and automotive electronics. The component is RoHS3 compliant and has an MSL rating of 1 (unlimited), though these compliance statuses are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.38 | $0.38 |
| 10+ | $0.31 | $0.31 |
| 25+ | $0.24 | $0.24 |
| 100+ | $0.22 | $0.22 |
| 250+ | $0.18 | $0.18 |
| 500+ | $0.16 | $0.16 |
| 1,000+ | $0.15 | $0.15 |
| 12,000+ | $0.15 | $0.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
33 Ω at 100 MHz.
5A.
-55°C to 125°C.
Horizontal, 4 PC Pad surface mount package with dimensions 5.60mm x 5.00mm x 3.05mm.
Yes, it is listed as RoHS3 compliant, but this information is unverified.
2 lines.
Maximum 1.1 mOhm.
