| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
148 pcs
|
148 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Ambient Temperature (Operation) | |
| Color | |
| Constructional Height | |
| Features | |
| Flammability Class | |
| For Use With | |
| Height | |
| Housing Material | |
| Housing Type | |
| Industrial Grade | |
| Length | |
| Material | |
| Minimum Order Quantity | |
| Number of Positions | |
| Packing Unit | |
| Power Dissipation | |
| SVHC Present | |
| Type | |
| UL | |
| Width |

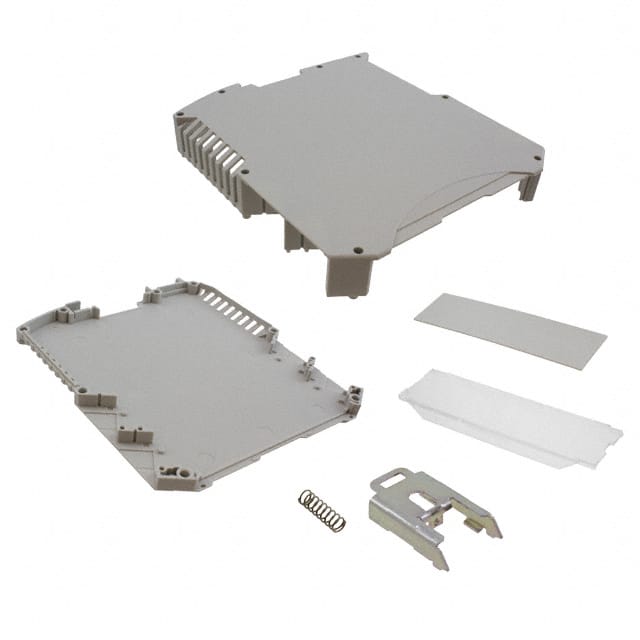

The Phoenix Contact 2713625 is an electronic housing kit from the ME MAX series, designed as a complete housing solution for enclosing electronic assemblies. The housing consists of left and right shells, a front plate, a transparent cover, metal foot catch and spring, and is supplied as an open housing.
The mechanical specifications include a length of 99.0 mm, width of 22.5 mm, and height of 114.5 mm, providing a compact footprint for DIN rail mounting. The housing material is polyamide (plastic) in a light gray color, offering durability and electrical insulation. The unit accommodates 16 positions arranged in 4 x 4 configuration, suitable for plug-in connectors.
Thermal and environmental characteristics include an operating temperature range of -40 °C to 105 °C and a flammability class of V0 according to UL 94. The power dissipation is rated at 6.1 W at 20°C in horizontal mounting position. The housing is RoHS3 compliant, REACH unaffected, and UL/cUL recognized.
The packaging unit is 1 piece with a minimum order quantity of 10. The product is manufactured in Germany.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.15 | $15.15 |
| 10+ | $10.52 | $10.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The housing measures 99.0 mm length, 22.5 mm width, and 114.5 mm height.
The housing is made of polyamide (plastic) in light gray color.
The housing has 16 positions arranged in 4 x 4 configuration.
The operating temperature range is -40 °C to 105 °C.
The housing is listed as RoHS3 compliant, though this is unverified.
The flammability class is V0 according to UL 94.
