| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Type | |
| Conductor Material | |
| Conductor Strand | |
| Jacket (Insulation) Diameter | |
| Jacket (Insulation) Material | |
| Jacket (Insulation) Thickness | |
| Jacket Color | |
| Jacket Diameter | |
| Jacket Material | |
| Jacket Thickness | |
| Length | |
| Number of Conductors | |
| Operating Temperature | |
| Operating Temperature Range | |
| Shield Coverage | |
| Shield Material | |
| Shield Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Gauge (AWG) |

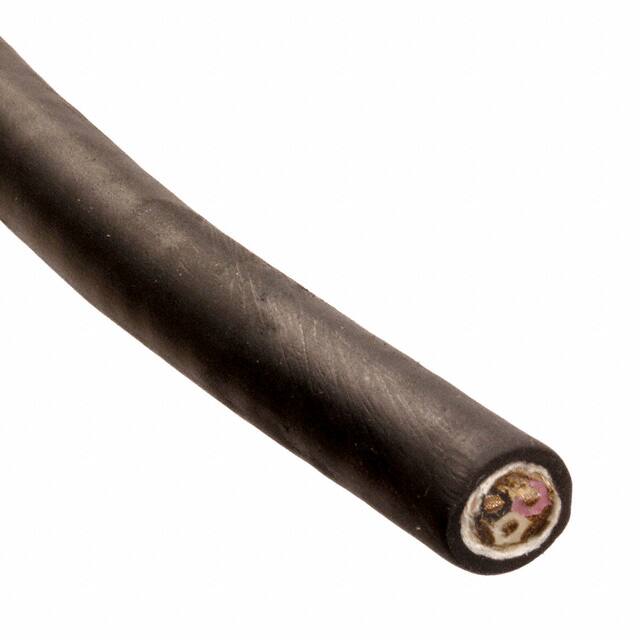

The Daburn Electronics 2713/3 is a 3-conductor, 36 AWG multi-conductor cable from the DAFLEX series, designed for low-voltage applications requiring flexibility. Each conductor uses ultra-flexible, finely stranded bare copper (25/50 strand) with color-coded PVC insulation.
The cable features a tinned copper braid shield providing 90% minimum coverage, covered by a soft flexible black PVC jacket with a nominal outer diameter of 0.063" (1.60 mm) and jacket thickness of 0.0100" (0.254 mm). It is rated for 200 V operation and has an operating temperature range of -40°C to +105°C.
Typical applications include computer, bio-medical instruments, missiles, robotics, recorders, and servers where flexibility and shielding are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $711.51 | $711.51 |
| 2+ | $676.33 | $676.33 |
| 3+ | $656.41 | $656.41 |
| 5+ | $631.98 | $631.98 |
| 7+ | $616.30 | $616.30 |
| 10+ | $600.00 | $600.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
200 V.
-40°C to +105°C.
Yes, RoHS3 Compliant.
Black PVC (Poly-Vinyl Chloride).
Tinned copper braid shield with 90% minimum coverage.
