| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| 1st Connector | |
| 1st Connector Mounting Feature | |
| 1st Connector Mounting Type | |
| 1st Contact Gender | |
| 2nd Connector | |
| 2nd Connector Mounting Type | |
| 2nd Contact Gender | |
| Approval Agency | |
| Cable Type | |
| Color | |
| External Diameter | |
| Frequency | |
| Frequency Range | |
| Length | |
| Minimum Bending Radius | |
| Operating Temperature | |
| Outer Sheath Material | |
| Overall Impedance | |
| SVHC Present | |
| Standard Package Quantity | |
| Style | |
| Weight per Piece | |
| attenuation (Nominal @ 2.4 GHz) | |
| attenuation (Nominal @ 5 GHz) | |
| attenuation (Nominal @ 868/900 MHz) |

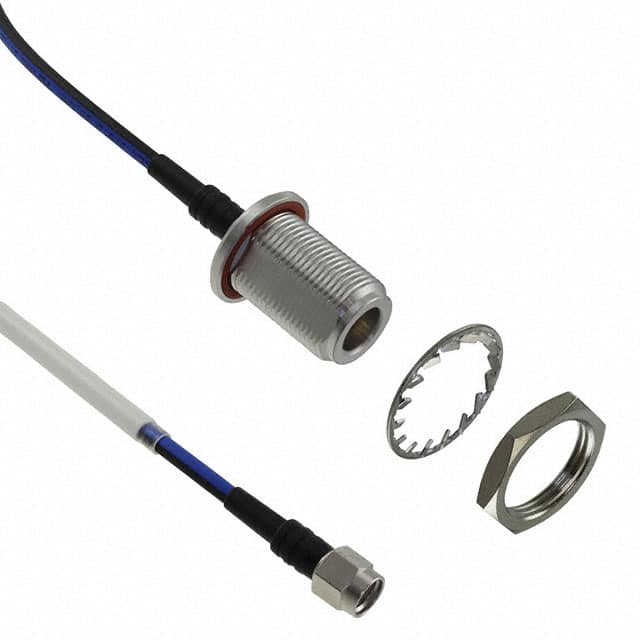

The Phoenix Contact 2701402 is a pre-assembled antenna cable designed for RF applications. It features a 0.5 meter length with an RP-SMA plug (female contact) on one end and an N-Type jack (female contact) on the other. The cable type is EF 316 with a RADOX® (LSZH) outer sheath, providing low smoke zero halogen properties. The cable has an external diameter of 2.50 mm and a minimum bending radius of 12.50 mm. It operates over a temperature range of -40°C to 70°C. The cable is rated for 50Ω impedance and supports frequencies up to 5 GHz, with specified attenuation values: 0.6 dB at 868/900 MHz, 1 dB at 2.4 GHz, and 1.4 dB at 5 GHz. The RP-SMA connector is panel mount with bulkhead front side nut, while the N-Type connector is free hanging (in-line). This assembly is suitable for use as a control cabinet feed-through or adapter between devices and cables. It is RoHS3 compliant and REACH unaffected. The standard package quantity is 1 piece, weighing 60.0 g.
| Qty | Low | High |
|---|---|---|
| 1+ | $102.96 | $102.96 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 70°C
Yes, it is RoHS3 compliant.
500.00 mm (19.69 inches)
50 Ω
RP-SMA Plug (female) on one end and N-Type Jack (female) on the other.
900 MHz, 2.4 GHz, and 5 GHz.
1 dB
