| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
894 pcs
|
894 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Forward Current | |
| Forward Voltage | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Current | |
| Reverse Voltage | |
| Storage Temperature | |
| Tape & Reel | |
| Viewing Angle |

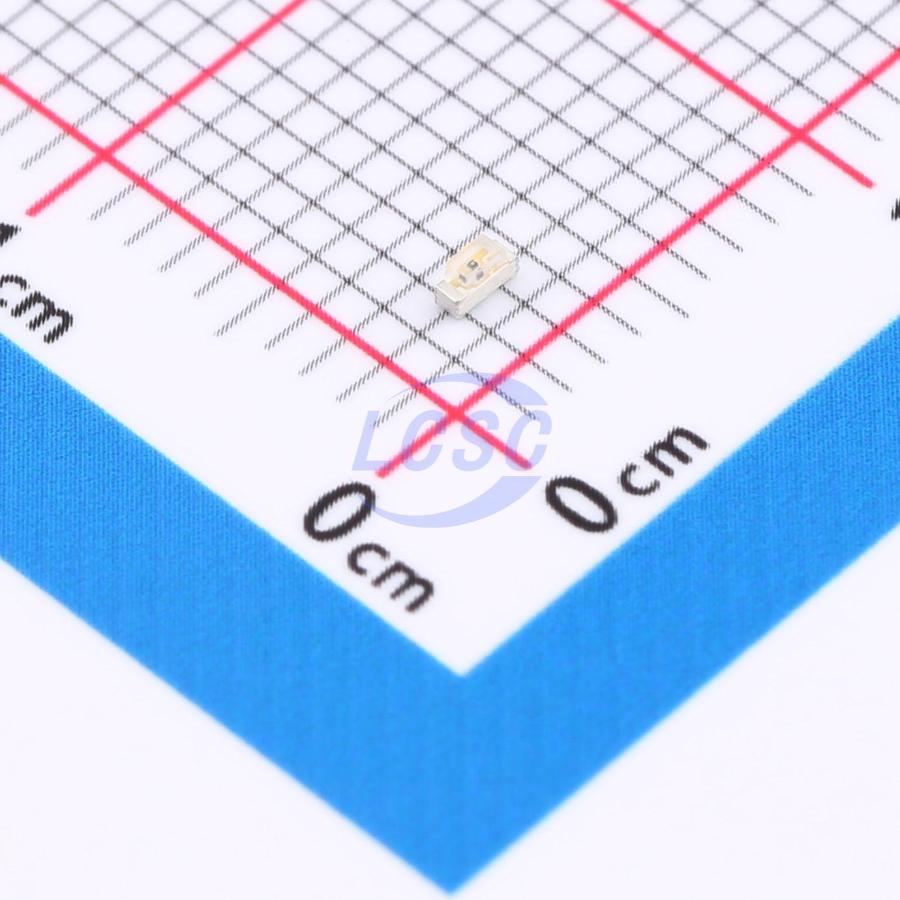

The Everlight Electronics 27-21/G6C-AN1P1/3C is a Brilliant Yellow Green LED designed for discrete indication applications. This SMD (Surface Mount Device) component is compatible with automatic placement and reflow soldering processes.
Key electrical characteristics include a forward voltage range of 1.75V to 2.35V and a maximum forward current of 25mA. The LED emits light with a peak wavelength of 575nm and a dominant wavelength between 569.5nm and 577.5nm. It provides a luminous intensity ranging from 28.5 to 57.0 mcd at 20mA, with a broad viewing angle of 130 degrees.
This LED operates within a temperature range of -40°C to +85°C and is packaged in an 8mm tape on a 7-inch diameter reel, suitable for high-density mounting. It is Pb-free and complies with RoHS3 and Halogen Free standards.
Applications include backlighting for dashboards and switches, indicators in telecommunication devices like telephones and faxes, and general-purpose flat backlighting for LCDs and symbols.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
SMD (Surface Mount Device).
-40 to +85°C.
1.75 V to 2.35 V at 20 mA.
28.5 to 57.0 mcd at 20 mA.
130 degrees.
569.5 nm to 577.5 nm.
Reflow soldering at 260°C for 10 seconds, hand soldering at 350°C for 3 seconds.
