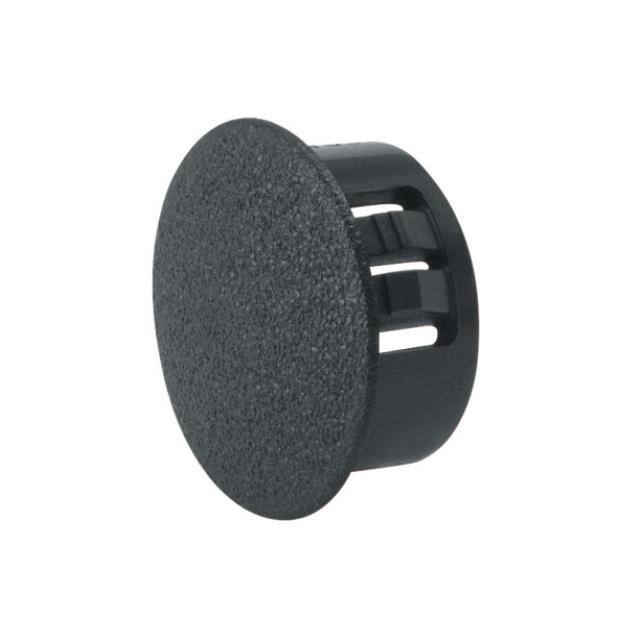

2646 Heyco 2646 (HFP 500) is a black Nylon 6/6 body plug designed for 0.500" (12.7mm) mounting holes. It features a 0.580" (14.73mm) head diameter, UL94 V-0 flammability rating, and operates from -40°C to 105°C.
Mfr Part #:

2646

Available from 1 distributors
Mfr Name: Heyco Products Corporation
Heyco Products Corporation
Heyco 2646 (HFP 500) is a black Nylon 6/6 body plug designed for 0.500" (12.7mm) mounting holes. It features a 0.580" (14.73mm) head diameter, UL94 V-0 flammability rating, and operates from -40°C to 105°C.
✓ Total Stock: 1 pcs

2646 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2646 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Flange Diameter
Halogen Free
Hole Diameter
Material
Mounting Type
Panel Thickness
Temperature Range
Type
View Similar Products (0)

2646 Description

Short technical summary and product information.

The Heyco 2646 (HFP 500) is a body plug molded from heat-stabilized Nylon 6/6 material with a black finish. It is designed to close unneeded panel holes quickly and easily. The plug features a convex, matte finish head that tapers to a thin edge, and locking fingers that secure it into panels up to 0.125" (3.2mm) thick. The mounting hole diameter is 0.500" (12.7mm), and the head diameter is 0.580" (14.73mm) with an overall height of 0.410" (10.41mm). This plug is UL recognized (File E51579) and CSA certified (File 8919), with a flammability rating of UL94 V-0. It is halogen and phosphorus-free, and operates over a temperature range of -40°C to 105°C. The press fit installation ensures a secure hold without additional hardware. Suitable for use in various applications requiring a reliable, non-toxic, and UV-resistant hole closure solution.

2646 Quick Information

Product Type: Body Plug
Series: HFP
Canonical Name: Heyco HFP 500 Nylon 6/6 Body Plug, 0.500" Hole, 0.580" Head, UL94 V-0

2646 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2646 Features

  • Nylon 6/6 material with UL94 V-0 rating.
  • Fits 0.500" (12.7mm) mounting holes.
  • Convex matte finish head 0.580" diameter.
  • Press fit locking for panels up to 0.125" thick.
  • Halogen and phosphorus-free construction.

2646 Applications

  • Closes unneeded panel holes in electrical enclosures.
  • Seals hole in automotive body panels.
  • Used in industrial equipment for cable pass-throughs.

2646 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the Heyco 2646 body plug?

The operating temperature range is -40°C to 105°C.

Is the Heyco 2646 RoHS compliant?

Yes, it is listed as RoHS3 compliant, but this status is unverified.

What material is the 2646 body plug made of?

It is molded from Nylon 6/6.

What is the flammability rating of the Heyco 2646?

The flammability rating is UL94 V-0.

What size hole does the 2646 body plug fit?

It fits a 0.500" (12.7mm) diameter mounting hole.

What is the head diameter of the plug?

The head diameter is 0.580" (14.73mm).

What is the maximum panel thickness this plug can fit?

The maximum panel thickness is 0.125" (3.2mm).
