| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
164 pcs
|
164 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Filter Type | |
| Height | |
| Length | |
| Material | |
| Number of Rows | |
| Weight | |
| Width |

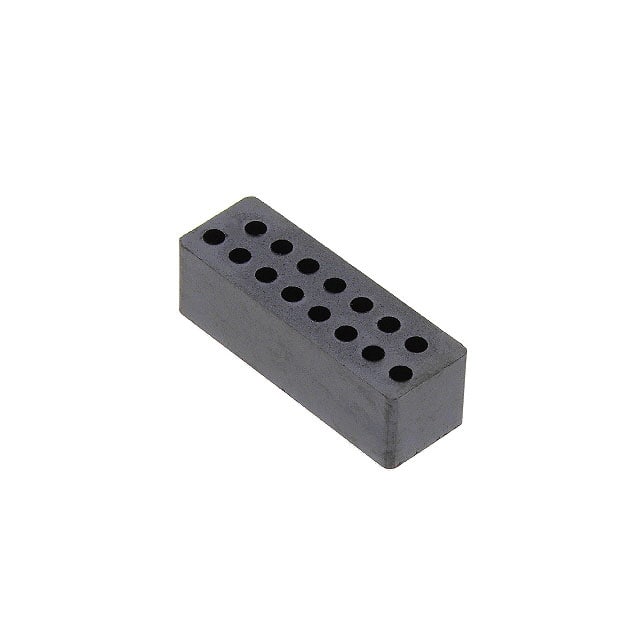

The Fair-Rite 2644236501 is a 44 material NiZn ferrite multi-hole plate designed for conducted EMI suppression at critical connector interfaces. It features 15 holes arranged in 2 rows, allowing multiple cables or wires to pass through for common-mode filtering. The plate measures 22.55mm in length, 7.75mm in width, and 6.86mm in height, with a weight of 4.9 grams.
This ferrite plate offers typical impedance of 78Ω at 25 MHz and 110Ω at 100 MHz, providing effective suppression in the 30 MHz to 500 MHz range. The 44 NiZn material has a high resistivity of 1×10^9 ohm-cm, minimizing eddy current losses at high frequencies. Key magnetic properties include initial permeability of 500, flux density of 3000 Gauss, and Curie temperature greater than 160°C.
The plate is suitable for use with various connector types and can be modified for specific applications. It is RoHS3 compliant and REACH unaffected, though these compliance statuses are unverified. The part is supplied as a single plate and is designed for easy integration into cable assemblies and connector backshells.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.91 | $1.91 |
| 10+ | $1.33 | $1.33 |
| 25+ | $1.14 | $1.14 |
| 50+ | $1.00 | $1.00 |
| 100+ | $0.88 | $0.88 |
| 288+ | $0.71 | $0.71 |
| 576+ | $0.63 | $0.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
78Ω typical at 25 MHz and 110Ω typical at 100 MHz.
Length 22.55mm, width 7.75mm, height 6.86mm.
44 NiZn ferrite.
15 holes in 2 rows.
4.9 grams.
RoHS3 compliant (unverified).
Greater than 160°C.
