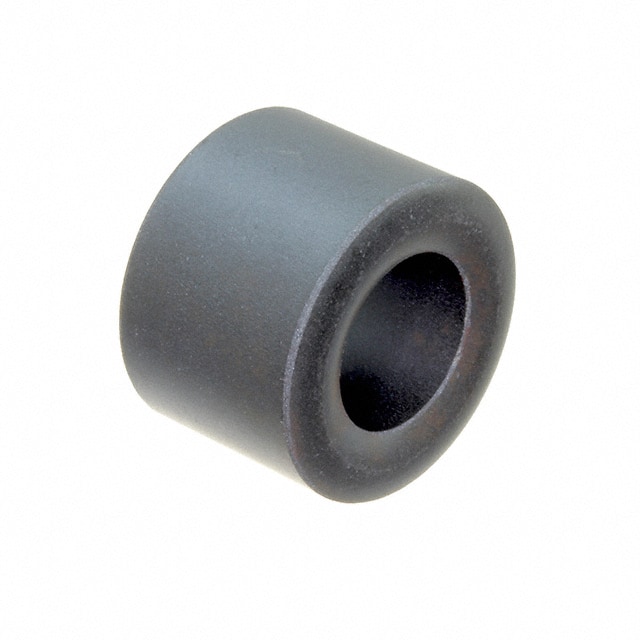

2643806402 Fair-Rite 2643806402 is a solid round cable ferrite core made of 43 material. It provides 90 Ohm typical impedance at 100 MHz with dimensions: 25.4mm OD x 15.49mm ID x 12.7mm L.
Mfr Part #:

2643806402

Available from 2 distributors
Mfr Name: Fair-Rite Products Corp.
Fair-Rite Products Corp.
Fair-Rite 2643806402 is a solid round cable ferrite core made of 43 material. It provides 90 Ohm typical impedance at 100 MHz with dimensions: 25.4mm OD x 15.49mm ID x 12.7mm L.
✓ Total Stock: 2 pcs
$ Price Range: $0.59 - $1.82

2643806402 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2643806402 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Design
Impedance @ Frequency
Inner Dimension
Length
Material
Mounting Type
Outer Dimension
Type
Weight
View Similar Products (0)

2643806402 Description

Short technical summary and product information.

The Fair-Rite 2643806402 is a solid round cable ferrite core designed for EMI suppression in cable applications. It is constructed from Fair-Rite's 43 material, a NiZn ferrite optimized for suppressing conducted interference from 20 MHz to 250 MHz.



This core offers a typical impedance of 90 Ohms at 100 MHz, with minimum impedance guaranteed at key test frequencies. The material exhibits an initial permeability of 800 and a Curie temperature greater than 130°C, ensuring stable performance under elevated temperatures.



Mechanically, the core has an outer diameter of 25.4mm, an inner diameter of 15.49mm, and a length of 12.7mm, weighing 19.4 grams. Its solid design and free-hanging mounting type allow it to be easily installed over cables for common-mode filtering.



This suppression core is suitable for a wide range of electronic equipment requiring EMI control, including power supplies, telecommunications, and industrial systems. It is RoHS3 and REACH compliant.

2643806402 Quick Information

Product Type: Cable Ferrite Core
Series: 43
Canonical Name: Fair-Rite 2643806402 Round Solid Cable Ferrite Core (43 Material, 90 Ohm @ 100 MHz)
Subcategory: EMI Suppression Core

2643806402 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2643806402 Estimated Pricing

Qty Low High
1+ $1.82 $1.82
10+ $1.26 $1.26
25+ $1.08 $1.08
50+ $0.96 $0.96
100+ $0.84 $0.84
250+ $0.70 $0.70
536+ $0.59 $0.59

Estimated market price range - modelled values for guidance only, not live distributor offers.

2643806402 Features

  • Solid round cable ferrite core construction.
  • 90 Ohm typical impedance at 100 MHz.
  • Made of Fair-Rite 43 NiZn ferrite material.
  • Free hanging mounting design.
  • Minimum impedance guaranteed at key frequencies.

2643806402 Applications

  • Suppresses conducted EMI in cable assemblies.
  • Ideal for power and signal line filtering.
  • Used in telecommunications and industrial equipment.

2643806402 FAQs

5 frequently asked questions generated from this part’s specifications.
Is the Fair-Rite 2643806402 RoHS compliant?

Yes, it is listed as RoHS3 compliant, though this is unverified.

What is the typical impedance at 100 MHz?

90 Ohms (minimum 78 Ohms).

What material is the core made of?

Fair-Rite 43 material, a NiZn ferrite for EMI suppression from 20 MHz to 250 MHz.

What are the dimensions of the core?

Outer diameter 25.4mm, inner diameter 15.49mm, length 12.7mm.

What is the mounting type?

Free hanging.
