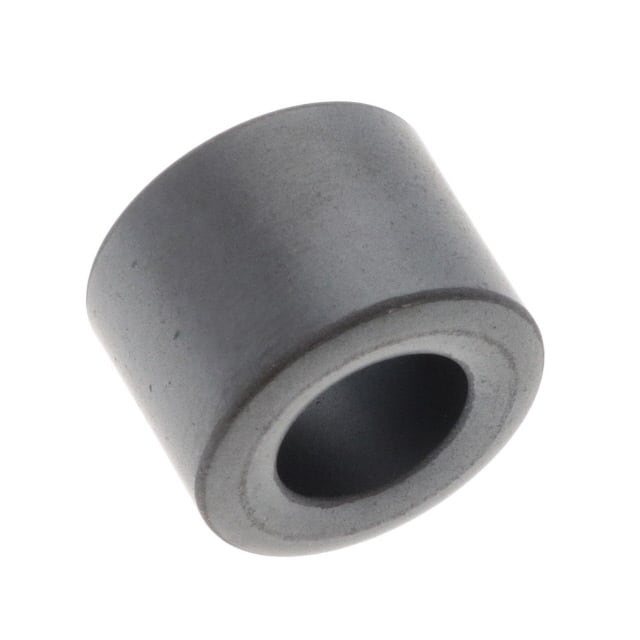

2643626302 Fair-Rite 2643626302 is a solid round ferrite core with 96 Ohm impedance at 100MHz. It features 18.67mm outer diameter and free hanging mounting.
Mfr Part #:

2643626302

Available from 2 distributors
Mfr Name: Fair-Rite Products Corp.
Fair-Rite Products Corp.
Fair-Rite 2643626302 is a solid round ferrite core with 96 Ohm impedance at 100MHz. It features 18.67mm outer diameter and free hanging mounting.
✓ Total Stock: 2 pcs
$ Price Range: $0.50 - $1.25

2643626302 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2643626302 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Design
Impedance @ Frequency
Inner Dimension
Length
Material
Mounting Type
Outer Dimension
Tape & Reel
Type
View Similar Products (0)

2643626302 Description

Short technical summary and product information.

The Fair-Rite 2643626302 is a solid round ferrite core made from NiZn ferrite material 43. It is designed for EMI suppression and noise filtering in cable applications. The core measures 18.67mm in outer diameter, with an inner diameter of 10.16mm and a length of 14.28mm, allowing it to accommodate cables up to approximately 10mm diameter.



At 100MHz, this core provides 96 Ohm impedance, making it effective for reducing high-frequency conducted emissions. The free hanging mounting type allows for easy installation on existing cables without additional hardware.



Common applications include power supply cables, data lines, and signal wires where electromagnetic interference needs to be attenuated. The round solid construction ensures durability and consistent magnetic performance.

2643626302 Quick Information

Product Type: Cable Ferrite Core
Series: 43
Canonical Name: Round Solid Ferrite Core, 43 Material, 96 Ohm @ 100MHz, 18.67mm OD
Subcategory: Cable Ferrites

2643626302 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2643626302 Estimated Pricing

Qty Low High
1+ $1.25 $1.25
10+ $0.87 $0.87
25+ $0.75 $0.75
50+ $0.66 $0.66
100+ $0.58 $0.58
250+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

2643626302 Features

  • Round solid ferrite core with NiZn material.
  • 96 Ohm impedance at 100MHz.
  • Free hanging mounting for easy installation.
  • Outer diameter of 18.67mm.
  • Inner diameter of 10.16mm for cables.

2643626302 Applications

  • Ideal for EMI suppression on power cables.
  • Used for noise filtering on data lines.
  • Suitable for signal cable interference reduction.

2643626302 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of this ferrite core?

96 Ohm at 100MHz.

What are the dimensions of the core?

Outer diameter 18.67mm, inner diameter 10.16mm, length 14.28mm.

What material is the core made of?

Fair-Rite material 43, a NiZn ferrite.

What is the mounting type?

Free hanging.

Is this product RoHS compliant?

RoHS3 Compliant (unverified, low confidence).

What is the DigiKey cross-reference part number?

1934-1271-ND.

What is the core design?

Solid round design.
