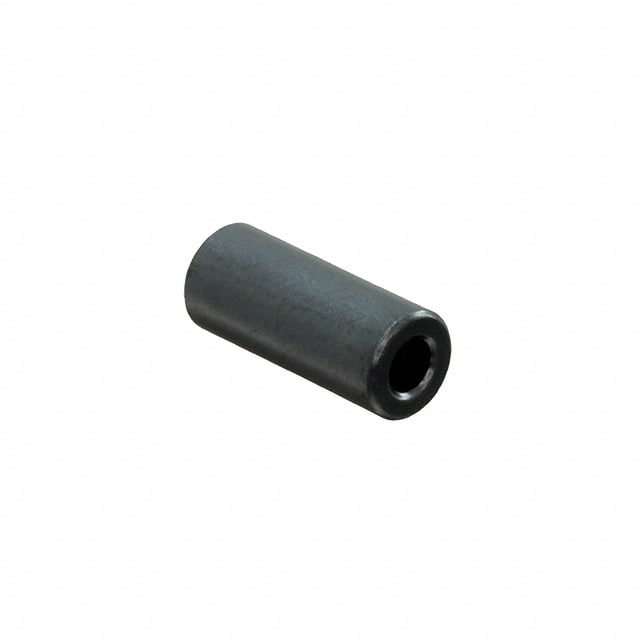

2643003201 Solid round cable ferrite core by Fair-Rite, 88Ohm impedance at 100MHz, 5.33mm outer diameter, 2.67mm inner diameter, 12.70mm length.
Mfr Part #:

2643003201

Available from 1 distributors
Mfr Name: Fair-Rite Products Corp.
Fair-Rite Products Corp.
Solid round cable ferrite core by Fair-Rite, 88Ohm impedance at 100MHz, 5.33mm outer diameter, 2.67mm inner diameter, 12.70mm length.
✓ Total Stock: 34 pcs
$ Price Range: $0.09 - $0.33

2643003201 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
34 pcs
On Request
34 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2643003201 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Design
Impedance @ Frequency
Inner Dimension
Length
Material
Mounting Type
Outer Dimension
Tape & Reel
Type
View Similar Products (0)

2643003201 Description

Short technical summary and product information.

The Fair-Rite 2643003201 is a solid round cable ferrite core designed for EMI suppression on cables and wires. It offers a nominal impedance of 88 Ohms at 100 MHz, making it suitable for filtering high-frequency noise. The core is made of Material 43, a nickel-zinc ferrite formulation commonly used for broadband EMI suppression from 25 MHz to 300 MHz.



Mechanically, the core has an outer diameter of 5.33 mm (0.210 inches) and an inner diameter of 2.67 mm (0.105 inches), accommodating small-diameter cables. Its length is 12.70 mm (0.500 inches). The solid design ensures a tight fit around the conductor for maximum common-mode impedance.



The core is designed for free-hanging mounting, allowing easy snap-on or slide-on installation over cables. It is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited).

2643003201 Quick Information

Product Type: Cable Ferrite Core
Canonical Name: Fair-Rite 2643003201 Round Solid Cable Ferrite Core, 88Ohm @ 100MHz, 5.33mm OD
Subcategory: Cable Ferrite

2643003201 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2643003201 Estimated Pricing

Qty Low High
1+ $0.33 $0.33
10+ $0.24 $0.24
25+ $0.20 $0.20
50+ $0.16 $0.16
250+ $0.14 $0.14
500+ $0.12 $0.12
1,000+ $0.11 $0.11
5,000+ $0.09 $0.09

Estimated market price range - modelled values for guidance only, not live distributor offers.

2643003201 Features

  • Solid round ferrite core for EMI suppression.
  • 88 Ohm impedance at 100 MHz.
  • Material 43 nickel-zinc ferrite formulation.
  • 5.33mm outer diameter, 2.67mm inner diameter.
  • Free hanging mounting design.

2643003201 Applications

  • EMI suppression on signal and power cables.
  • Noise filtering in consumer electronics.
  • Broadband interference reduction in telecom equipment.

2643003201 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of this ferrite core?

88 Ohms at 100 MHz.

What is the outer diameter of the core?

5.33 mm (0.210 inches).

What is the inner diameter of the core?

2.67 mm (0.105 inches).

What material is the core made of?

Material 43 (nickel-zinc ferrite).

Is this ferrite core RoHS compliant?

Yes, RoHS3 compliant (unverified).

What is the mounting type?

Free hanging.

What is the length of the core?

12.70 mm (0.500 inches).
