| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Housing Color | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

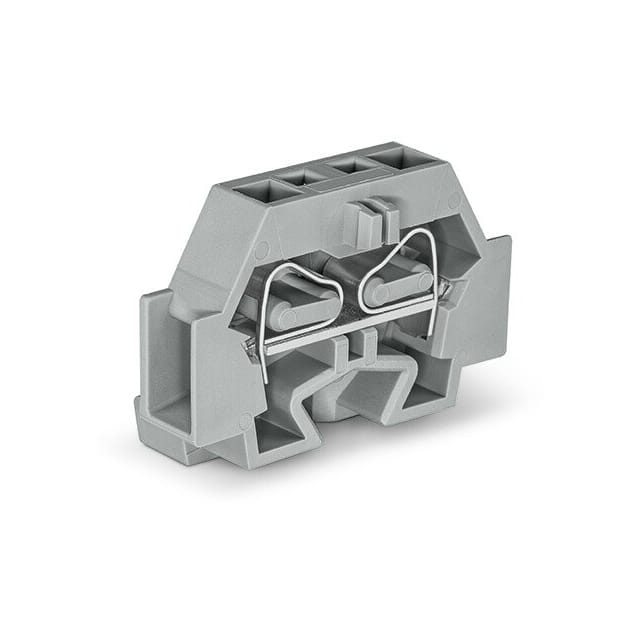

The Wago 262-301 is a 2-position through terminal block from the 262 series. It features CAGE CLAMP spring connection technology for fast and reliable wire termination without the need for ferrule crimping. The terminal block is designed for side-entry wiring and is operated with an operating tool.
Electrical ratings per IEC/EN include a nominal voltage of 690 V (III/3), rated impulse withstand voltage of 8 kV, and rated current of 32 A. Under UL 1059, the rated voltage is 300 V and rated current is 20 A (Use Group B). The terminal block accepts solid and fine-stranded conductors from 0.08 to 4 mm² (28-12 AWG) with a strip length of 9-10 mm.
The housing is made of gray polyamide (PA66) and measures 7 mm width, 33.4 mm height, and 23 mm depth. Mounting is via a fixing flange with a 3.2 mm diameter hole for screw or similar mounting types. The terminal block is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $3.54 | $3.54 |
| 10+ | $2.53 | $2.53 |
| 25+ | $2.21 | $2.21 |
| 50+ | $2.01 | $2.01 |
| 100+ | $1.84 | $1.84 |
| 250+ | $1.67 | $1.67 |
| 500+ | $1.56 | $1.56 |
| 1,000+ | $1.48 | $1.48 |
| 5,000+ | $1.36 | $1.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 2 positions.
The rated current is 32 A per IEC/EN and 20 A per UL 1059 (Use Group B).
The nominal voltage is 690 V per IEC/EN (III/3) and 300 V per UL 1059.
It is mounted using a fixing flange with a 3.2 mm diameter hole for screw or similar mounting types.
It accepts solid and fine-stranded conductors from 0.08 to 4 mm² (28-12 AWG).
It uses CAGE CLAMP spring connection technology.
The housing is gray.
