Board level heat sink for TO-263 (D²Pak) packages. Features copper construction with tin finish, clip attachment, and 11.00°C/W thermal resistance in natural convection.

✓ Total Stock: 2,000 pcs

$ Price Range: $0.85 - $1.31

26176CTE Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	2,000 pcs On Request	2000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

26176CTE Description

Short technical summary and product information.

The 26176CTE is a board level heat sink from Wakefield-Vette designed for cooling TO-263 (D²Pak) surface mount packages. It features a rectangular shape with fins to enhance heat dissipation. The heat sink is constructed from copper with a tin finish, providing good thermal conductivity and corrosion resistance. It uses a clip attachment method for secure mounting to the package.

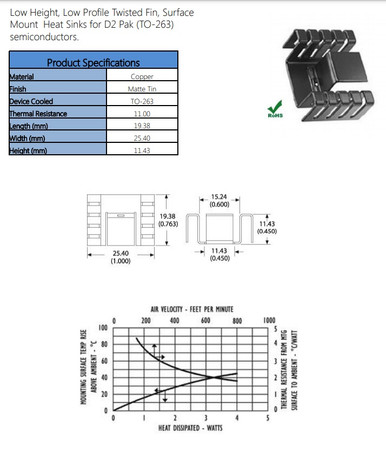

Key specifications include a width of 25.40mm (1.000"), a length of 19.38mm (0.763"), and a fin height of 11.43mm (0.450"). The thermal resistance is rated at 11.00°C/W under natural convection conditions. This heat sink is suitable for applications requiring passive cooling of TO-263 devices in natural convection environments.

The part is RoHS3 compliant and has an MSL of 1 (unlimited). It is commonly used in power management, motor control, and other circuits where efficient thermal management of surface mount packages is needed.

26176CTE Quick Information

Product Type: Heat Sink

Series: 261

Canonical Name: Board Level Heat Sink, Rectangular with Fins, Copper/Tin, for TO-263 (D²Pak)

Subcategory: Rectangular Finned Heat Sink

26176CTE Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

26176CTE Estimated Pricing

Qty	Low	High
1+	$1.31	$1.31
10+	$1.18	$1.18
25+	$1.15	$1.15
50+	$1.12	$1.12
100+	$1.06	$1.06
250+	$1.00	$1.00
500+	$0.95	$0.95
1,000+	$0.90	$0.90
2,000+	$0.85	$0.85

Estimated market price range - modelled values for guidance only, not live distributor offers.

26176CTE Features

Copper construction with tin finish.
Designed for TO-263 (D²Pak) packages.
Clip attachment for secure mounting.
11.00°C/W thermal resistance in natural convection.
Rectangular shape with fins for heat dissipation.

26176CTE Applications

Used for cooling surface mount TO-263 packages.
Suitable for natural convection environments.
Ideal for board level thermal management.
Common in power supply and motor control circuits.

26176CTE FAQs

6 frequently asked questions generated from this part’s specifications.

What package is this heat sink designed for?

It is designed for the TO-263 (D²Pak) package.

Is this heat sink RoHS compliant?

It is listed as RoHS3 Compliant, but this is unverified and low confidence.

What is the thermal resistance of this heat sink?

The thermal resistance is 11.00°C/W under natural convection.

What material is the heat sink made of?

It is made of copper with a tin finish.

What is the attachment method for this heat sink?

It uses a clip attachment method.

What are the dimensions of this heat sink?

Width: 25.40mm, Length: 19.38mm, Fin Height: 11.43mm.
