| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
112 pcs
|
112 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Country of Origin | |
| Current | |
| Current (Nominal) | |
| Depth | |
| Fire Load | |
| Flammability Class | |
| Halogen Free | |
| Height | |
| Housing Color | |
| Industrial Grade | |
| Insulation Material | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Packaging Type | |
| Rated Impulse Withstand Voltage | |
| Standard Package Qty | |
| Strip Length | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage (Nominal) | |
| Weight | |
| Width | |
| Wire Gauge or Range |

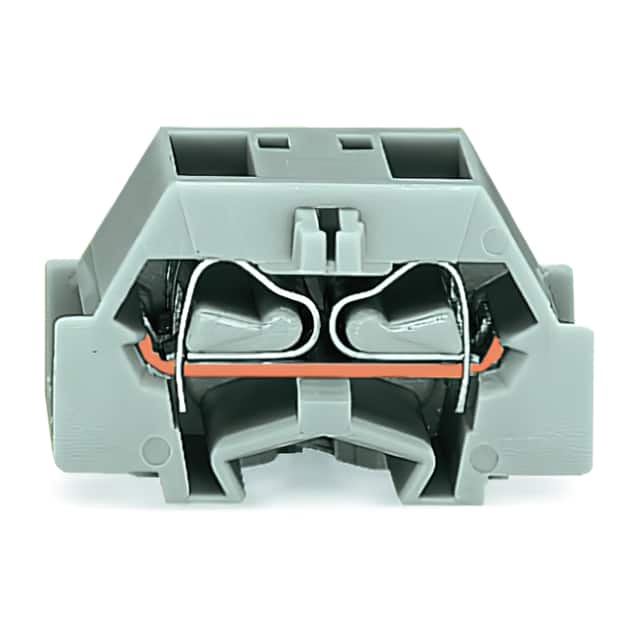

The Wago 261-331 is a 4-conductor through terminal block from the 261 series, designed for rail-mount applications. It features CAGE CLAMP® spring push-in termination for fast and reliable wire connection without tools. The block accepts wire sizes from 0.08 mm² to 2.5 mm² with a strip length of 8-9 mm.
Electrical ratings per IEC/EN include a nominal voltage of 500V (III/3) and a rated current of 24A, with a rated impulse withstand voltage of 6 kV. The terminal block has 4 clamping units on a single level, providing side-entry wiring. The housing is made of gray polyamide (PA66) with UL94 V0 flammability rating and is halogen-free.
Mechanical dimensions are 10 mm width, 28 mm height, and 18 mm depth, with a weight of 3.9 g. It is designed for direct mounting with a fixing flange and a 3.2 mm Ø fixing hole for screw or similar mounting. The operating tool actuation ensures secure connections. The product is packaged in a box of 200 pieces, with country of origin Switzerland (CH).
| Qty | Low | High |
|---|---|---|
| 1+ | $3.43 | $3.43 |
| 10+ | $2.44 | $2.44 |
| 25+ | $2.14 | $2.14 |
| 50+ | $1.94 | $1.94 |
| 100+ | $1.78 | $1.78 |
| 250+ | $1.61 | $1.61 |
| 500+ | $1.51 | $1.51 |
| 1,000+ | $1.43 | $1.43 |
| 5,000+ | $1.31 | $1.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 conductor positions on a single level.
The rated current is 24A and the rated voltage is 500V (IEC/EN III/3).
It accepts wire from 0.08 mm² to 2.5 mm² with a strip length of 8-9 mm.
It uses direct mounting with a fixing flange and a 3.2 mm Ø fixing hole for screw or similar mounting.
It uses CAGE CLAMP® push-in spring termination, side-entry wiring, actuated by an operating tool.
Yes, it is halogen-free and has a flammability class of UL94 V0.
Dimensions are 10 mm width, 28 mm height, and 18 mm depth. Weight is 3.9 g.
