| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
298 pcs
|
298 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Current | |
| Data Rate | |
| Frequency | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Tape & Reel | |
| Voltage |

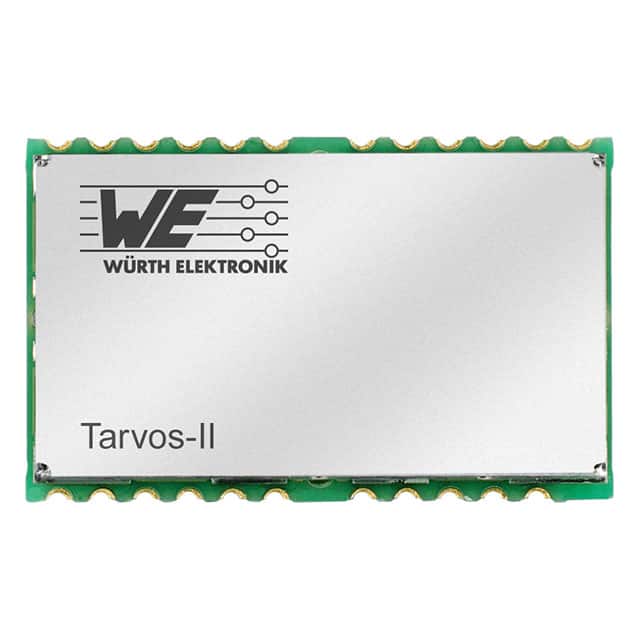

This Würth Elektronik 2607021181000 is an RF Transceiver Module designed for ISM applications below 1GHz. It operates within the 868MHz to 870MHz frequency band, offering a data rate of up to 100Kbps and a sensitivity of -117dBm. The module supports FSK and GFSK modulation and includes SPI, UART, and USB serial interfaces.
With an operating voltage range of 2V to 3.6V and a current consumption of 30mA, this module is suitable for various low-power applications. It is specified for an operating temperature range of -30°C to 85°C. The module features a castellation antenna type and is designed for surface mounting.
Key electrical characteristics include a power output of 14dBm. The module is presented in a 23-SMD Module package. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency range is 868MHz to 870MHz.
The sensitivity is -117dBm.
The data rate is 100Kbps.
The supported serial interfaces are SPI, UART, and USB.
The operating voltage range is 2V to 3.6V.
The operating temperature range is -30°C to 85°C.
The module is designed for surface mounting.
