Mfr Part #:

260-334

4-conductor terminal block with fixing flange, 1-pole, CAGE CLAMP connection, suitable for conductors 0.08-1.5 mm². Rated 18 A and 400 V (IEC/EN III/3).

✓ Total Stock: 219 pcs

$ Price Range: $1.04 - $2.76

260-334 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	219 pcs On Request	219 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

260-334 Description

Short technical summary and product information.

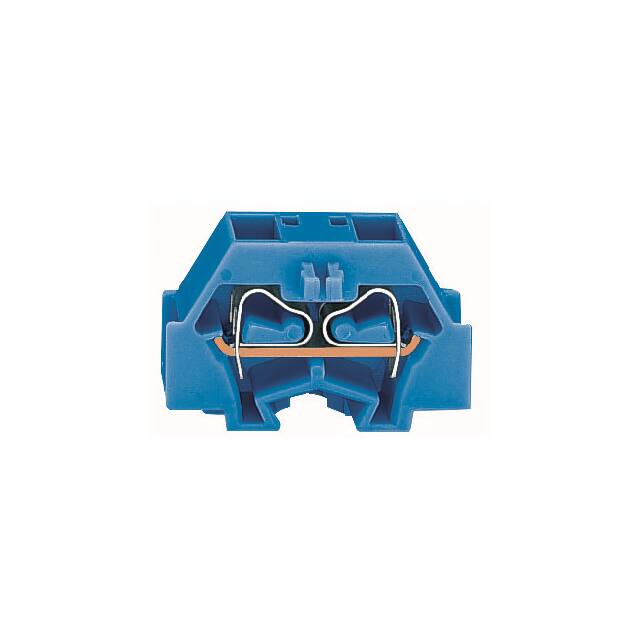

The Wago 260-334 is a 4-conductor through terminal block with a single pole and CAGE CLAMP push-in spring connection. It features a fixing flange for screw or similar mounting, with a 3.2 mm diameter fixing hole. The blue polyamide (PA66) housing is rated UL94 V0. This terminal block accepts solid and fine-stranded copper conductors from 0.08 to 1.5 mm² (28-16 AWG) with a strip length of 8-9 mm. Side-entry wiring and actuation via an operating tool simplify installation.

Electrical ratings per IEC/EN 60998: nominal voltage 400 V (III/3), rated impulse withstand voltage 6 kV, rated current 18 A. UL 1059 ratings: Use Group B and C: 300 V, 10 A; Use Group D: 600 V, 5 A. The continuous operating temperature range spans -60 to 105°C, with a processing temperature range of -35 to 85°C.

This terminal block is designed for compact control cabinets and junction boxes, offering a space-saving width of 8 mm. The CAGE CLAMP connection is maintenance-free and requires no conductor preparation. Each unit weighs 2.5 g and is box-packed in quantities of 300 pcs.

260-334 Quick Information

Product Type: Terminal Block

Series: 260

Canonical Name: 4-Conductor Terminal Block, 1-Pole, CAGE CLAMP, 1.5 mm², with Fixing Flange, Blue

Subcategory: Mini Rail-Mount Terminal Block

260-334 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

260-334 Estimated Pricing

Qty	Low	High
1+	$2.76	$2.76
10+	$1.98	$1.98
25+	$1.72	$1.72
50+	$1.57	$1.57
100+	$1.43	$1.43
250+	$1.29	$1.29
500+	$1.21	$1.21
1,000+	$1.14	$1.14
5,000+	$1.04	$1.04

Estimated market price range - modelled values for guidance only, not live distributor offers.

260-334 Features

4-conductor, 1-pole through terminal block.
CAGE CLAMP push-in spring connection for fast wiring.
Rated 18 A and 400 V (IEC/EN III/3).
Compact 8 mm width for space-saving installation.
Wide operating temperature range -60 to 105°C.

260-334 Applications

Suitable for control cabinet wiring and junction boxes.
Ideal for industrial automation and building installation.
Used in tight spaces requiring mini rail-mount terminal blocks.

260-334 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this terminal block have?

4 positions.

What is the rated current of this terminal block?

18 A (IEC/EN III/3); 10 A (UL 1059 Use Group B and C); 5 A (UL 1059 Use Group D).

What is the rated voltage?

400 V (IEC/EN III/3); 300 V (UL 1059 Use Group B and C); 600 V (UL 1059 Use Group D).

What is the mounting type?

Mounting flange with fixing hole 3.2 mm Ø.

What wire gauge does it support?

0.08-1.5 mm² (28-16 AWG).

What is the connection technology?

CAGE CLAMP push-in spring connection.

What is the operating temperature range?

Continuous: -60 to 105°C; processing: -35 to 85°C.

Category	Specialized
Manufacturer Name	Wago Corporation
Current	18 A
Depth	25.1 mm
Height	17.1 mm
Housing Color	Blue
Lead Spacing	8 mm
Lead Style	8.0Mm
Mounting Type	Mounting flange
Number of Levels	1
Number of Positions	4
Storage Temperature	-35°C ~ 85°C
Terminal	8.0mm
Termination Style	Push In, Spring
Type	Middle
Voltage	400 V
Weight	2.5 g
Width	8 mm
Wire Gauge or Range	0.08-1.5 mm² (28-16 AWG)
