| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuation Type | |
| Color | |
| Connection Technology | |
| Country of Origin | |
| Current | |
| Depth | |
| Design | |
| Fine-Stranded Conductor Range | |
| Fire Load | |
| Flammability Class | |
| Height | |
| Housing Color | |
| Insulation Material | |
| Lead Style | |
| Marking Level | |
| Material Group | |
| Mounting Method | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Number of Potentials | |
| Packaging Type | |
| Pitch | |
| Rated Impulse Withstand Voltage (III/3) | |
| Solid Conductor Range | |
| Standard Package Quantity | |
| Strip Length | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Weight | |
| Width | |
| Wire Gauge Range | |
| Wire Gauge or Range | |
| Wiring Direction | |
| current_rating (Nominal @ CSA 22.2 No 158 Use Group C) | |
| current_rating (Nominal @ IEC/EN 60947) | |
| current_rating (Nominal @ UL 1059 Use Group C) | |
| current_rating (Nominal @ UL 1059, Use Group B) | |
| current_rating (Nominal @ UL 1059, Use Group D) | |
| voltage_rating (Nominal @ CSA 22.2 No 158 Use Group C) | |
| voltage_rating (Nominal @ IEC/EN 60947) | |
| voltage_rating (Nominal @ UL 1059 Use Group C) | |
| voltage_rating (Nominal @ UL 1059, Use Group B) | |
| voltage_rating (Nominal @ UL 1059, Use Group D) |

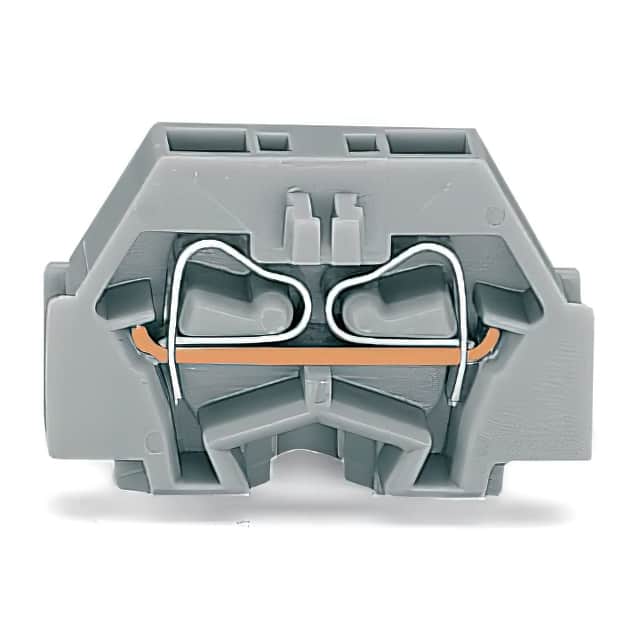

The Wago 260-303 is a 2-conductor through terminal block from the 260 Series, featuring a CAGE CLAMP connection system for tool-less, maintenance-free wire termination. It is rated for 18 A at 400 V (IEC/EN 60947) with a rated impulse withstand voltage of 6 kV. The terminal block accepts solid and fine-stranded conductors from 0.08 mm² to 1.5 mm² (28-16 AWG) with an 8-9 mm strip length.
Mechanically, the block has a 5.0 mm pitch, a width of 5 mm, height of 17.1 mm, and depth of 25.1 mm. It is designed for side-entry wiring and is actuated with an operating tool. The housing is light gray polyamide (PA66) with a flammability rating of V0. Mounting is via a fixing flange with a 3.2 mm diameter hole. The part weighs 1.6 g.
For UL 1059 compliance, ratings vary by use group: 300 V / 10 A (Group B, C) and 600 V / 5 A (Group D). CSA 22.2 No. 158 use group C is rated 300 V / 10 A.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.89 | $1.89 |
| 10+ | $1.36 | $1.36 |
| 25+ | $1.19 | $1.19 |
| 50+ | $1.07 | $1.07 |
| 100+ | $0.98 | $0.98 |
| 250+ | $0.88 | $0.88 |
| 500+ | $0.82 | $0.82 |
| 1,000+ | $0.77 | $0.77 |
| 5,000+ | $0.69 | $0.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a 2-conductor terminal block with 1 potential (single pole).
The pitch is 5.0 mm.
IEC/EN 60947 rating: 18 A / 400 V. UL 1059 rating: 10 A / 300 V (Groups B, C) and 5 A / 600 V (Group D).
It uses a mounting flange (fixing flange) with a 3.2 mm diameter hole, suitable for screw or similar mounting types.
It accepts solid and fine-stranded conductors from 0.08 mm² to 1.5 mm² (28-16 AWG).
It uses CAGE CLAMP connection technology.
Width 5 mm, height 17.1 mm, depth 25.1 mm.
