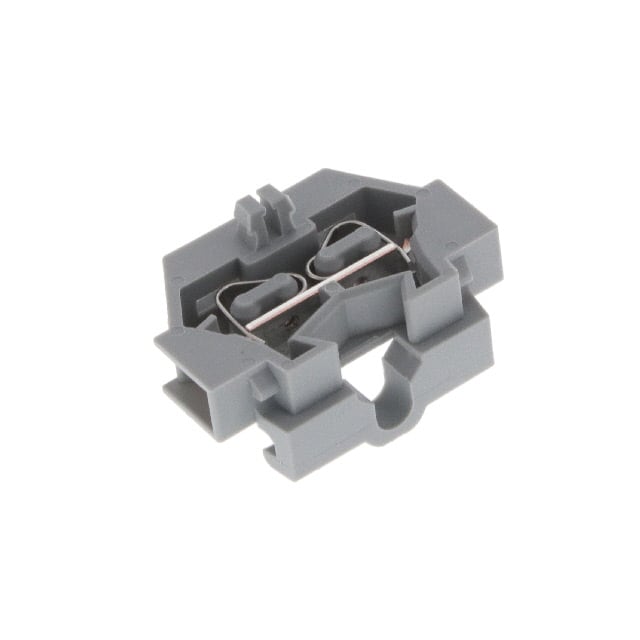

The Wago 260-301 is a 2-conductor terminal block designed for reliable wire connections in industrial and building automation applications. It utilizes CAGE CLAMP spring connection technology for fast, maintenance-free wiring.
Electrically, the terminal block is rated for 18 A continuous current and 400 V rated voltage per IEC/EN (III/3). It also carries UL approvals with ratings of 10 A at 300 V (Use Groups B and C) and 5 A at 600 V (Use Group D). The rated impulse voltage is 6 kV. It accepts solid and fine-stranded copper conductors from 0.08 to 1.5 mm² (28 to 16 AWG) with a strip length of 8 to 9 mm.
Mechanically, the block has a width of 5 mm, height of 17.1 mm, and depth of 25.1 mm. The housing is made of gray polyamide (PA66) with a flammability class of V0 per UL94. It features a fixing flange for direct screw mounting and side-entry wiring for easy access. The design is horizontal with side marking.
The part is supplied in a box of 300 pieces, with country of origin Switzerland. It is RoHS compliant, REACH unaffected, and has an MSL of 1 (unlimited). Typical applications include control panels, power distribution, and signal wiring where space-saving and secure connections are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.80 | $1.80 |
| 10+ | $1.30 | $1.30 |
| 25+ | $1.13 | $1.13 |
| 50+ | $1.02 | $1.02 |
| 100+ | $0.93 | $0.93 |
| 250+ | $0.83 | $0.83 |
| 500+ | $0.78 | $0.78 |
| 1,000+ | $0.73 | $0.73 |
| 5,000+ | $0.66 | $0.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 2 connection points (positions).
The terminal spacing is 5 mm.
Rated current is 18 A per IEC/EN, 10 A for UL Use Groups B and C, and 5 A for UL Use Group D.
Rated voltage is 400 V per IEC/EN (III/3), 300 V for UL Use Groups B and C, and 600 V for UL Use Group D.
It uses direct mount with a fixing flange for screw mounting.
It uses CAGE CLAMP spring connection technology.
It accepts solid and fine-stranded copper conductors from 0.08 to 1.5 mm² (28 to 16 AWG).
