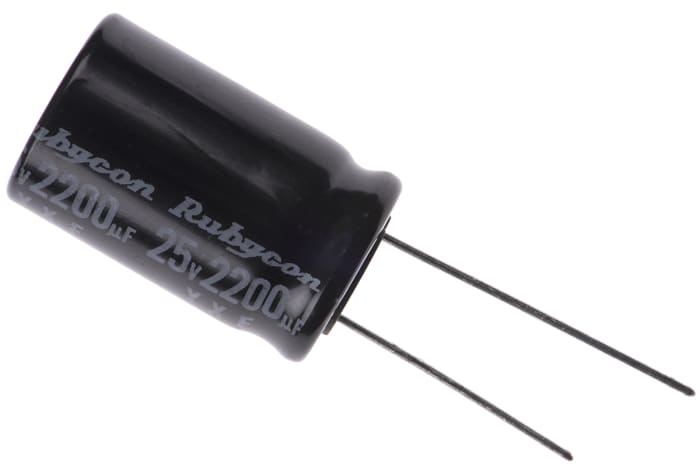

25YXF2200M16X25 This Rubycon 25YXF2200M16X25 is a 2200μF, 25V dc radial aluminum electrolytic capacitor. It is designed for through-hole mounting and operates up to 105°C.
Mfr Part #:

25YXF2200M16X25

Available from 1 distributors
Mfr Name: Rubycon
Rubycon
This Rubycon 25YXF2200M16X25 is a 2200μF, 25V dc radial aluminum electrolytic capacitor. It is designed for through-hole mounting and operates up to 105°C.
✓ Total Stock: 22 pcs
$ Price Range: $0.29

25YXF2200M16X25 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
22 pcs
On Request
22 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

25YXF2200M16X25 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Diameter
Dissipation Factor
Failure Rate
Height
Length
Mounting Type
Storage Temperature
Tape & Reel
Tolerance
Voltage
View Similar Products (0)

25YXF2200M16X25 Description

Short technical summary and product information.

The Rubycon 25YXF2200M16X25 is a miniature, high-temperature radial aluminum electrolytic capacitor designed for applications where board space is limited. It offers a capacitance of 2200μF with a voltage rating of 25V dc.



Key electrical specifications include a ripple current of 1.9A, a leakage current of 3μA, and a capacitance tolerance of ±20%. The capacitor operates within a temperature range of -40°C to 105°C and has a rated lifetime of 10000 hours.



Mechanically, this component features a radial can construction with through-hole mounting. Its dimensions are 25mm in height and length, with a diameter of 16mm and a lead pitch of 7.5mm. The capacitor is supplied in bulk packaging.



This series is suitable for various electronic applications requiring reliable power filtering and energy storage. Its compact size and robust performance make it a good choice for space-constrained designs.

25YXF2200M16X25 Quick Information

Product Type: Aluminum Capacitor
Series: YXF
Canonical Name: Rubycon 2200 μF Capacitor 25V dc Radial Through Hole

25YXF2200M16X25 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

25YXF2200M16X25 Estimated Pricing

Qty Low High
1+ $0.29 $0.29

Estimated market price range - modelled values for guidance only, not live distributor offers.

25YXF2200M16X25 Features

  • 2200μF capacitance and 25V dc voltage rating.
  • Miniature high-temperature radial electrolytic capacitor.
  • Operates from -40°C to 105°C.
  • Through-hole mounting with radial leads.
  • 10000-hour rated lifetime.

25YXF2200M16X25 Applications

  • Suitable for space-constrained designs.
  • Ideal for power filtering applications.
  • Used in general electronic circuits.
  • Provides energy storage.

25YXF2200M16X25 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the capacitance of the Rubycon 25YXF2200M16X25 capacitor?

The capacitance is 2200μF.

What is the operating voltage for the Rubycon 25YXF2200M16X25 capacitor?

The operating voltage is 25V dc.

What is the operating temperature range for this capacitor?

The operating temperature range is -40°C to 105°C.

What type of mounting does the Rubycon 25YXF2200M16X25 capacitor use?

It uses through-hole mounting.

What is the ripple current rating?

The capacitor has a ripple current rating of 1.9A.

What is the expected lifetime of this capacitor?

The rated lifetime is 10000 hours.
