| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

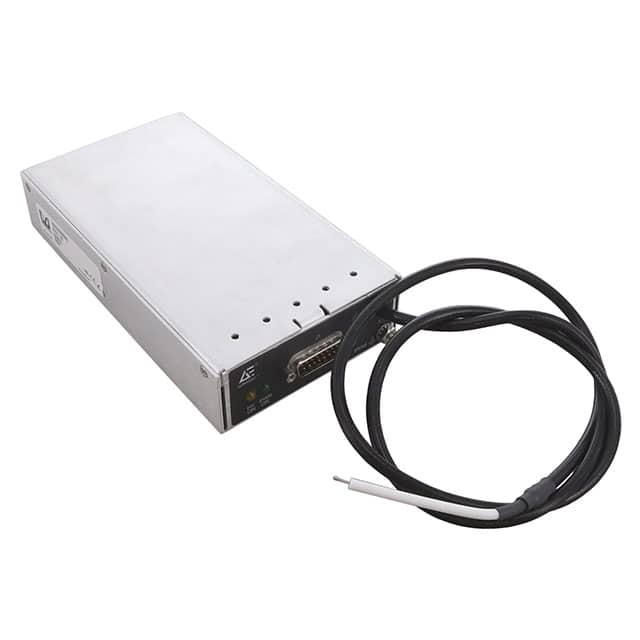

The Advanced Energy 25LE24-N30 is a high-voltage DC DC converter rated for 30W of power. It features a single output with a remarkable 25000V voltage and a maximum output current of 1.2mA. The converter operates within an input voltage range of 23V to 30V.
Designed for robust integration, this unit is enclosed and intended for chassis mounting. Its operating temperature range is from 10°C to 45°C. The dimensions are 184.9mm in length, 100.0mm in width, and 38.1mm in height. It complies with standard 62368-1 and holds approvals from CE and cURus.
This converter is specifically suited for ITE (Commercial) applications. Its specifications make it a reliable choice for systems requiring high voltage DC conversion within these parameters.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 25000V.
The power rating is 30W.
The operating temperature range is 10°C to 45°C.
It is designed for chassis mounting.
It is suitable for ITE (Commercial) applications.
