| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

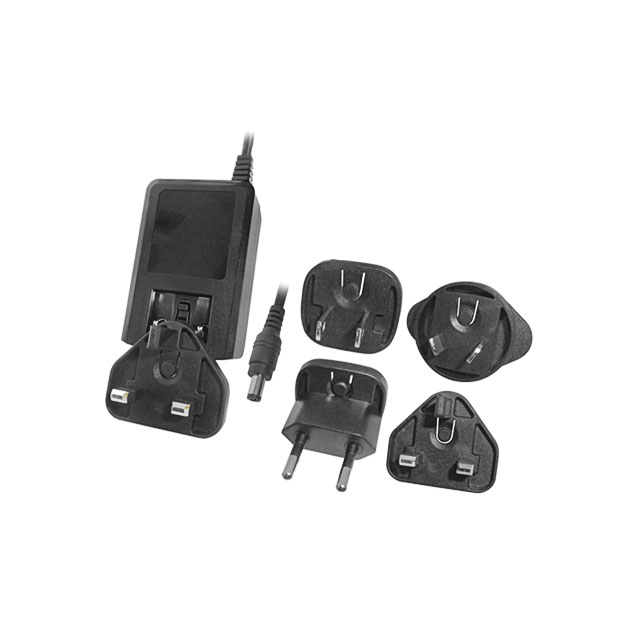

This Ideal Power 25HK-AY-090A266-CP is an AC/DC external wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 9V output with a maximum current of 2.66A, providing a total power of 24W. The adapter operates within a universal input voltage range of 90 to 264 VAC and features Level VI efficiency, ensuring optimal energy consumption.
Designed for convenience, it comes with a multi-blade input connector and is housed in a compact wall mount (Class II) form factor. The operating temperature range is from 0°C to 40°C. This model is compliant with international standards including 62368-1 and has received numerous agency approvals such as CB, CE, cUL, FCC, GS, RCM, TUV, and UL.
The dimensions of the adapter are 79.1mm x 46.2mm x 37.0mm. It is RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. The REACH status is unaffected. This adapter is suitable for various commercial applications requiring a reliable power source.
The adapter provides a 9V output voltage and a maximum output current of 2.66A.
The adapter has a power rating of 24W.
The adapter accepts an input voltage range of 90 to 264 VAC.
The adapter can operate in temperatures ranging from 0°C to 40°C.
Yes, it meets Level VI efficiency standards.
The dimensions are 79.1mm x 46.2mm x 37.0mm.
It meets Standard Number 62368-1 and has approvals from CB, CE, cUL, FCC, GS, RCM, TUV, and UL.
