| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

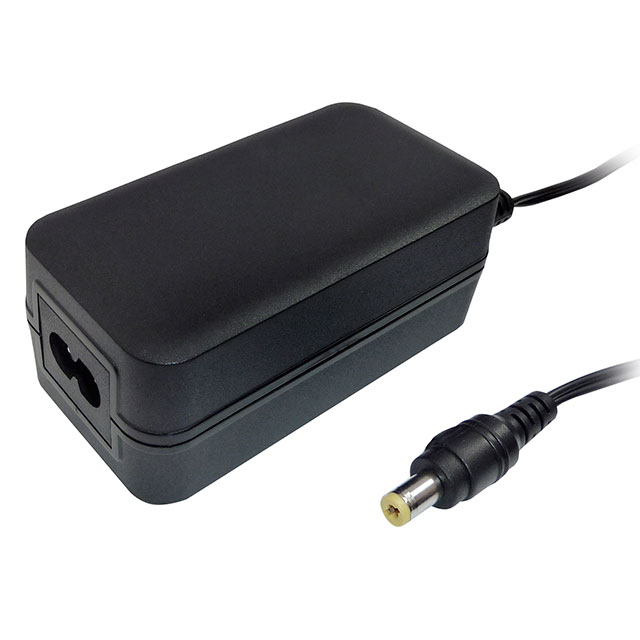

This AC/DC desktop adapter from Ideal Power Ltd., part number 25HK-AY-050A300-DH, delivers 15 watts of power with a stable 5V output and a maximum current of 3A. Designed for commercial ITE applications, it operates within a wide input voltage range of 90 to 264 VAC and meets the IEC 60950-1 standard.
The adapter features an IEC 320-C8 input connector and a common 2.5mm I.D. x 5.5mm O.D. barrel plug output, with a cord length of 1.50 meters. Its compact dimensions (87.6mm x 45.5mm x 35.0mm) make it suitable for various space-constrained designs. The unit is Class II rated and operates within a temperature range of 0°C to 40°C.
Compliance certifications include CB, CE, cUL, FCC, GS, RCM, TUV, and UL, indicating broad market acceptance. The adapter also meets ROHS3 compliance standards.
The adapter outputs 5V DC at up to 3A (15W).
The input voltage range is 90 to 264 VAC.
The operating temperature range is 0°C to 40°C.
It has a barrel plug with 2.5mm inner diameter and 5.5mm outer diameter, 12.0mm length.
The adapter is packaged in a box.
Yes, it is designed to comply with standard number 60950-1.
