| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

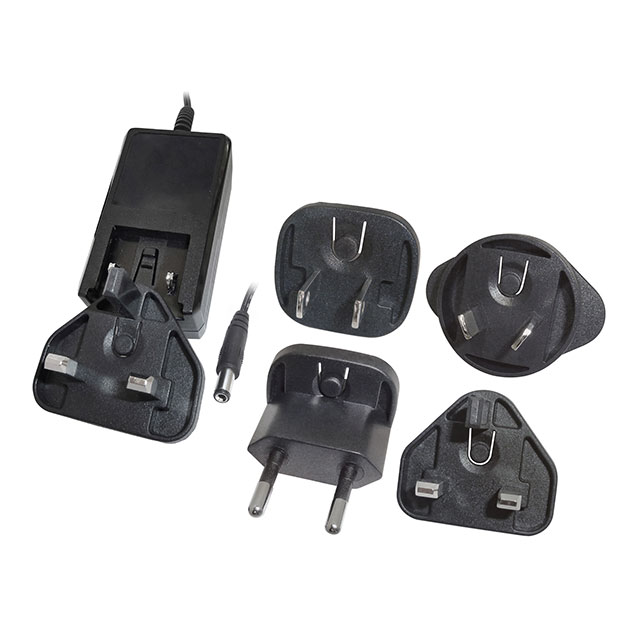

This AC/DC wall mount adapter from Ideal Power Ltd., model 25HK-AW-120A125-CP, delivers 15 watts of power with a stable 12V output and a maximum current of 1.25A. Designed for ITE (Commercial) applications, it features a wide input voltage range of 90 to 264 VAC, making it suitable for international use.
The adapter operates within a temperature range of 0°C to 40°C and has an efficiency of 84.13%. It includes a multi-blade input connector and a Power DIN, 2-pin output connector. The unit is housed in a Class II wall mount form factor and comes with a 72-inch cord.
Compliance certifications include CB, CE, cUL, FCC, GS, RCM, TUV, and UL, adhering to the standard number 60950-1. The adapter is RoHS3 compliant and has a REACH Unaffected status. Its dimensions are 71.4mm x 41.0mm x 34.3mm.
The input voltage range is 90 to 264 VAC.
Output voltage is 12V at up to 1.25A.
Operating temperature range is 0°C to 40°C.
This is a wall mount (Class II) adapter with a multi-blade input connector and 2-pin DIN output.
It has approvals from CB, CE, cUL, FCC, GS, RCM, TUV, and UL.
Efficiency is 84.13% typical.
Dimensions are 71.4mm x 41.0mm x 34.3mm.
