| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage |

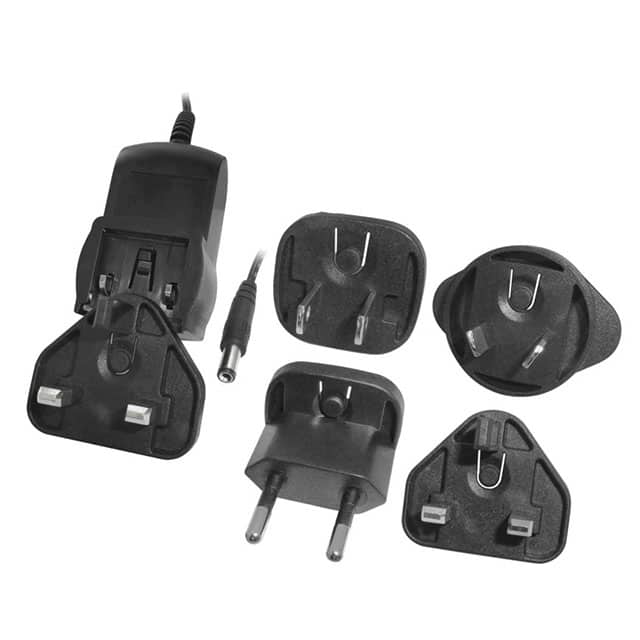

This AC/DC wall mount adapter from Ideal Power Ltd., part number 25HK-AP-150A040-CP-3A, provides a 15V output at a maximum current of 400mA, delivering a total power of 6W. It operates with an input voltage range of 90 to 264 VAC and features an efficiency of 78.88% with a low no-load power consumption of 100mW maximum.
The adapter has a compact form factor with dimensions of 64.5mm x 38.0mm x 34.8mm and a cord length of 1.80m. The output connector is a standard Barrel Plug measuring 2.1mm I.D. x 5.5mm O.D. x 12.0mm, with a positive center polarization. The input connector is a multi-blade type, included with the adapter.
Designed for ITE (Commercial) applications, this adapter meets the standard 60950-1 and has received numerous approvals including CB, CCC, CE, cUL, FCC, GS, PSE, RCM, TUV, and UL. It operates within a temperature range of 0°C to 40°C. The unit is a Class II wall mount type.
The input voltage range is 90 to 264 VAC.
The output is 15V DC at 400mA maximum.
It uses a barrel plug with 2.1mm inner diameter and 5.5mm outer diameter, 12.0mm length.
It is a wall mount (Class II) design with a multi-blade input connector included.
The operating temperature range is 0°C to 40°C.
It is approved to CB, CCC, CE, cUL, FCC, GS, PSE, RCM, TUV, and UL standards.
The typical efficiency is 78.88%.
