| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

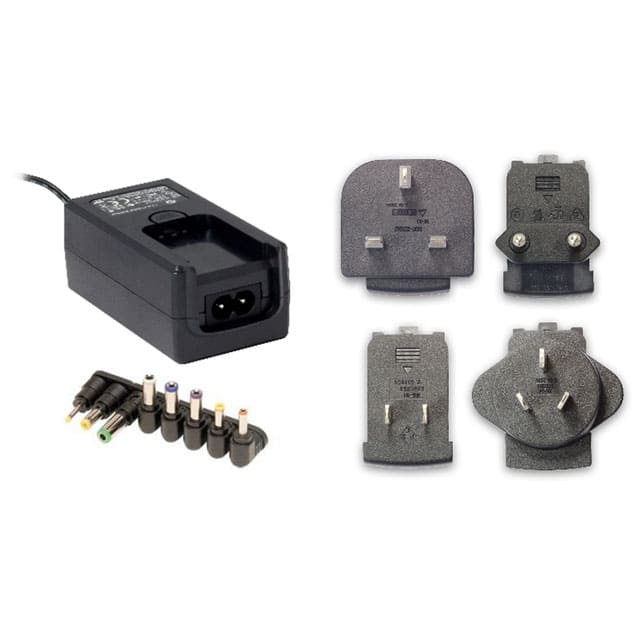

The Ideal Power Ltd. 25HK-AB-050A400-CP6 is an AC/DC Desktop/Wall Mount Adapter with a 5V output voltage and 4A current, delivering 20W of power. This adapter is suitable for ITE (Commercial) applications and operates internationally.
Key specifications include an input voltage range of 100-240 VAC and an efficiency rating of 83.08%. The operating temperature range is from 0°C to 40°C. The adapter features a low no-load power consumption of 100mW (Max).
Mechanically, the unit measures 101.0mm in length, 52.0mm in width, and 36.0mm in height. It includes an IEC 320-C8, Multi-Blade input connector and a Power DIN, 2 Pin output connector. The cord length is 47.2 inches (1.20m).
Compliance is noted with a standard number of 60950-1 and approval agencies including CB, CCC, CE, FCC, GS, PSE, RCM, and TUV. The RoHS status is RoHS3 Compliant, MSL is 1 Unlimited, and REACH status is Unaffected.
The input voltage range is 100-240 VAC.
It provides 5 VDC at 4 A.
The operating temperature range is 0°C to 40°C.
The adapter achieves 83.08% efficiency.
It uses a 2-pin Power DIN connector.
It is approved by CB, CCC, CE, FCC, GS, PSE, RCM, and TUV.
