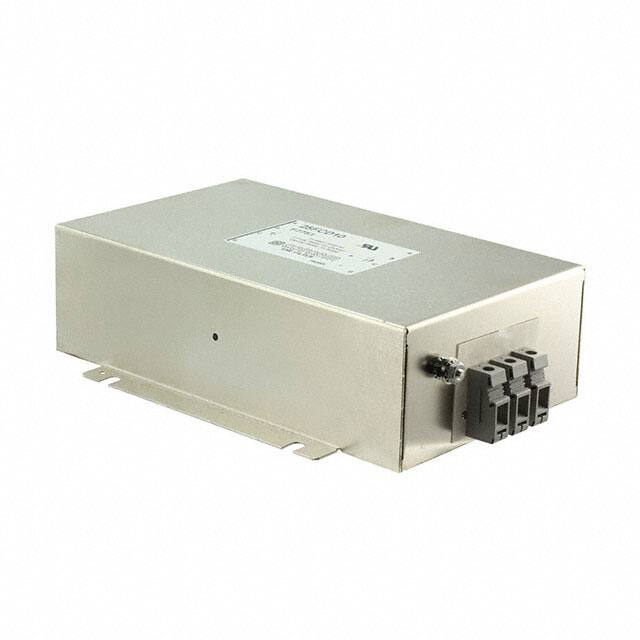

25FCD10 Three phase power line filter rated 25 A at 277 V, 50/60Hz, two-stage delta configuration for regenerative motor drive applications.
Mfr Part #:

25FCD10

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
Three phase power line filter rated 25 A at 277 V, 50/60Hz, two-stage delta configuration for regenerative motor drive applications.
✓ Total Stock: 10 pcs

25FCD10 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

25FCD10 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Configuration
Current
Filter Type
Frequency
Lead Style
Mounting Type
Operating Temperature
Termination Style
Voltage
View Similar Products (0)

25FCD10 Description

Short technical summary and product information.

The 25FCD10 is a three phase (delta) power line filter designed for regenerative motor drive applications. It operates at a rated current of 25 A and a rated voltage of 277 V with a line frequency of 50/60Hz. The filter uses a two-stage configuration to provide effective EMI suppression. It is chassis mounted and terminated via terminal block connections. The operating temperature range is -10°C to 40°C. The part carries UR approval and is RoHS3 compliant.



This filter is intended for use in industrial power systems where three phase delta connected loads require conducted emission attenuation. The two-stage design offers improved insertion loss characteristics compared to single-stage filters. The chassis mount package allows secure installation in equipment enclosures.



The 25FCD10 is manufactured by TE Connectivity, a leading supplier of connectivity and sensor solutions. The part is suitable for regenerative motor drives, which recover energy during braking and require robust filtering to meet EMC standards.

25FCD10 Quick Information

Product Type: Power Line Filter Module
Canonical Name: 25FCD10 Three Phase Power Line Filter
Subcategory: Three Phase Delta Filter

25FCD10 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

25FCD10 Features

  • 25 amp rated current at 277V.
  • Two-stage delta configuration.
  • Chassis mount with terminal block.
  • Operating range -10°C to 40°C.
  • UR approved for safety compliance.

25FCD10 Applications

  • Used in regenerative motor drive systems.
  • Suitable for three phase power supplies.
  • Industrial equipment EMI filtering.
  • Power conversion and inverter applications.

25FCD10 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the rated current of the 25FCD10?

25 A

What is the rated voltage?

277 V

What is the filter configuration?

Two-stage, three phase delta

What is the mounting type?

Chassis mount

What is the operating temperature range?

-10°C to 40°C

Is the 25FCD10 RoHS compliant?

RoHS3 Compliant (unverified)
