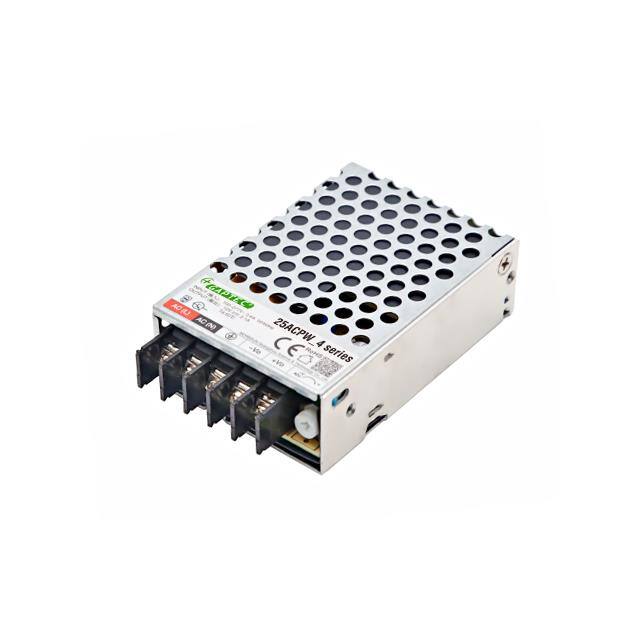

The GAPTEC Electronic 25ACPW_03S4 is a 25W enclosed AC-DC switching power supply designed for reliable power conversion. It features a universal input voltage range of 85-305VAC or 100-430VDC, accepting both AC and DC inputs. This converter offers a single 3.3V output with a maximum current of 6A.
Key specifications include up to 88% efficiency, a no-load power consumption of less than 0.5W, and high I/O isolation test voltage up to 4000VAC. It provides essential protections such as output short circuit, over-current, and over-voltage protection. The operating ambient temperature range is -30°C to +70°C.
Designed for various applications including ITE (Commercial), this converter meets safety standards like IEC/UL62368-1 and GB4943.1. It is housed in a metal case with dimensions of 65.0mm x 55.0mm x 25.0mm and utilizes free air convection for cooling. The unit is RoHS3 compliant and has an MSL of 1.
The output voltage is 3.3V.
The input voltage range is 85-305VAC or 100-430VDC.
The operating temperature range is -30°C to +70°C with derating.
It uses chassis mount.
It complies with IEC/UL62368-1, GB4943.1, IS13252 (Part 1), EN62368-1, and BS EN 62368-1.
Ripple and noise is 120mV peak-to-peak at 20MHz bandwidth.
Yes, it has hiccup mode short circuit protection with continuous self-recovery.
