| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Region Utilized | |
| Voltage | |
| Width |

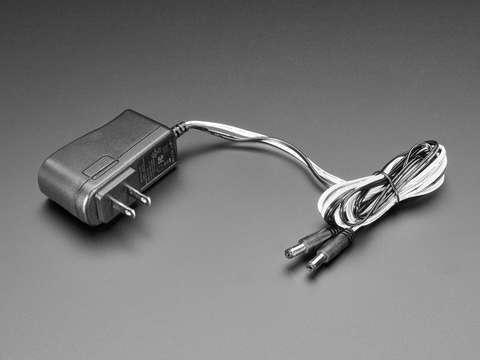

The Adafruit Industries LLC 2591 is a switching split power supply designed for applications requiring both positive and negative voltage rails. It delivers a nominal +12VDC and -12VDC, with each output capable of supplying up to 500mA, for a total of 1A.
This adapter features an efficiency rating of 86% and operates within a temperature range of 0°C to 40°C. The input connector is a standard NEMA 1-15P, common in North America, and the output is delivered via a 5.5mm x 2.1mm barrel plug with a positive center polarization. The unit has a cord length of 1.2 meters (47.2 inches).
Designed for ITE (Commercial) applications, this wall mount adapter is particularly useful for analog electronics, motor controllers, lab equipment, and modular synthesizers that require a symmetrical power source. Its dimensions are 86.4mm x 48.3mm x 30.5mm.
This power supply provides a split output of +12VDC and -12VDC.
Each output can supply up to 500mA.
The operating temperature range is 0°C to 40°C.
It uses a NEMA 1-15P input connector.
The dimensions are 86.4mm x 48.3mm x 30.5mm.
This product is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
