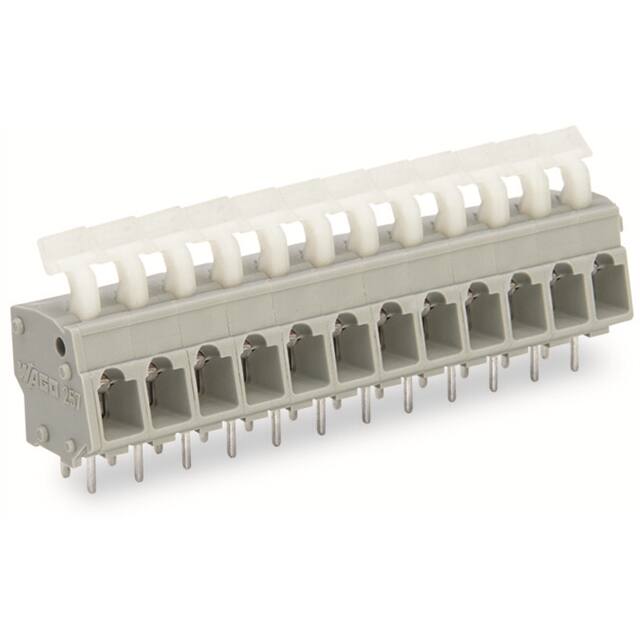

257-456 Wago 257-456 is a 6-pole PCB terminal block with 5.08mm pitch, screwless push-button clamp termination, and through-hole mounting. Rated for 15A and 300V.
Mfr Part #:

257-456

Available from 1 distributors
Mfr Name: Wago Corporation
Wago Corporation
Wago 257-456 is a 6-pole PCB terminal block with 5.08mm pitch, screwless push-button clamp termination, and through-hole mounting. Rated for 15A and 300V.
✓ Total Stock: 84 pcs

257-456 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
84 pcs
On Request
84 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

257-456 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Features
Lead Spacing
Mating Orientation
Mounting Type
Number of Levels
Number of Poles
Pitch
Positions Per Level
Termination Style
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

257-456 Description

Short technical summary and product information.

The Wago 257-456 is a 6-pole PCB terminal block designed for wire-to-board connections. It features a 5.08mm (0.200") pin spacing and a screwless push-button clamp termination, enabling fast and tool-free wire installation. The component accepts wire gauges from 12 to 28 AWG with a maximum cross section of 2.5 mm².



Rated for 15A current and 300V voltage, this terminal block is suitable for a variety of industrial and commercial applications. The through-hole mounting style ensures a secure mechanical connection to the PCB. The gray housing and push-button actuator provide clear visual identification and ease of use.



This part is RoHS3 compliant and has an MSL of 1 (unlimited). It is part of Wago's CAGE CLAMP® family, known for reliable and maintenance-free wire connections.

257-456 Quick Information

Product Type: PCB Terminal Block
Series: 257
Canonical Name: Wago 257-456 PCB Terminal Block, 6-Pole, 5.08mm Pitch, Screwless Push-Button Clamp, Through Hole, Gray
Subcategory: Wire to Board

257-456 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

257-456 Features

  • 6-pole PCB terminal block with 5.08mm pitch.
  • Screwless push-button clamp for tool-free wiring.
  • Rated for 15A current and 300V voltage.
  • Accepts 12 to 28 AWG wire gauge.
  • Through-hole mounting with gray housing.

257-456 Applications

  • Ideal for wire-to-board PCB connections.
  • Used in industrial control and automation systems.
  • Suitable for building and lighting applications.
  • Common in power distribution and signal wiring.

257-456 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Wago 257-456 have?

The Wago 257-456 has 6 positions (poles).

What is the pitch of the Wago 257-456?

The pitch is 5.08mm (0.200").

What is the current rating of the Wago 257-456?

The current rating is 15 A.

What is the voltage rating of the Wago 257-456?

The voltage rating is 300 V.

What mounting type does the Wago 257-456 use?

It uses through-hole mounting.

What wire gauge does the Wago 257-456 accept?

It accepts 12 to 28 AWG wire.

What termination style does the Wago 257-456 use?

It uses a screwless push-button clamp termination.
