| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
266 pcs
|
266 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
266 pcs
|
266 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuation Type | |
| Color | |
| Conductor Connection Direction to PCB | |
| Conductor Cross Section | |
| Connection Technology | |
| Current | |
| Current Rating | |
| Depth | |
| Features | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pin Spacing | |
| Pitch | |
| Positions Per Level | |
| Rated Current (Nominal @ CSA, Use group B) | |
| Rated Current (Nominal @ CSA, Use group D) | |
| Rated Current (Nominal @ IEC/EN 60664-1) | |
| Rated Current (Nominal @ UL 1059, Use group B) | |
| Rated Current (Nominal @ UL 1059, Use group D) | |
| Rated Impulse Withstand Voltage | |
| Rated Voltage (Nominal @ CSA, Use group B) | |
| Rated Voltage (Nominal @ CSA, Use group D) | |
| Rated Voltage (Nominal @ IEC/EN 60664-1, Overvoltage Cat II, Pollution Deg 2) | |
| Rated Voltage (Nominal @ IEC/EN 60664-1, Overvoltage Cat III, Pollution Deg 2) | |
| Rated Voltage (Nominal @ IEC/EN 60664-1, Overvoltage Cat III, Pollution Deg 3) | |
| Rated Voltage (Nominal @ UL 1059, Use group B) | |
| Rated Voltage (Nominal @ UL 1059, Use group D) | |
| Solder Pin Dimensions | |
| Strip Length | |
| Termination Style | |
| Voltage | |
| Voltage Rating | |
| Width | |
| Wire Gauge | |
| Wire Termination |

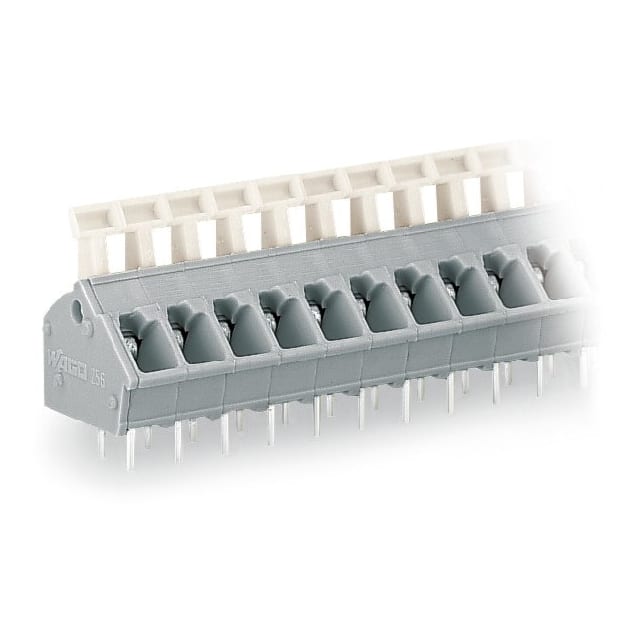

The Wago 256-408 is an 8-position PCB terminal block from the 256 Series, featuring a 5.08mm pin spacing and a 45° conductor entry angle. It uses the CAGE CLAMP connection technology with push-button actuation for tool-free wire termination, accepting solid and fine-stranded conductors from 0.08 to 2.5 mm² (12-28 AWG) with a strip length of 5-6 mm.
Rated at 15A/300V per UL 1059 (Use Group B) and 24A/250V per IEC/EN 60664-1 (Overvoltage Cat III, Pollution Deg 3), this terminal block offers a rated impulse withstand voltage of 4 kV. The through-hole design with solder pin dimensions of 0.7 x 0.7 mm ensures reliable PCB mounting.
The gray housing measures 42.9 mm wide, 22.2 mm high, and 17.6 mm deep. The push-button actuator simplifies field wiring, making it suitable for industrial control and building automation applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.10 | $10.10 |
| 10+ | $7.16 | $7.16 |
| 25+ | $6.33 | $6.33 |
| 50+ | $5.82 | $5.82 |
| 100+ | $5.41 | $5.41 |
| 250+ | $4.99 | $4.99 |
| 500+ | $4.74 | $4.74 |
| 1,000+ | $4.56 | $4.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Wago 256-408 has 8 positions (poles).
The pitch is 5.08 mm (0.200 inches).
The current rating is 15 A per UL 1059 (Use Group B) and 24 A per IEC/EN 60664-1.
The voltage rating is 300 V per UL 1059 (Use Group B) and 250 V per IEC/EN 60664-1 (Overvoltage Cat III, Pollution Deg 3).
The mounting type is Through Hole (THT).
It accepts 12-28 AWG wire (0.08 to 2.5 mm²).
It uses CAGE CLAMP push-button (screwless) termination.
