| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
67 pcs
|
67 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector System | |
| Contact Material | |
| Contact Plating | |
| Current | |
| Failure Rate | |
| Housing Material | |
| Number of Contacts | |
| Number of Rows | |
| Orientation | |
| Pitch | |
| Voltage |

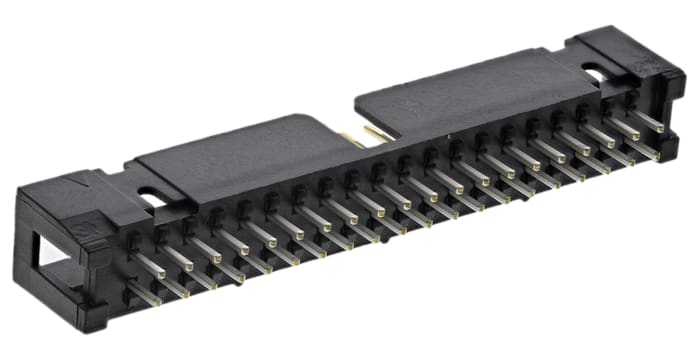

The 3M Electronic Solutions 2540-6002RB is a 40-contact PCB header belonging to the 2500 series. This component features a straight orientation and through-hole mounting type, making it suitable for board-to-board and wire-to-board applications. It has a pitch of 2.54mm and a row pitch of 2.54mm, with a male contact gender.
The header is constructed with a glass-filled polyester housing and copper alloy contacts plated with gold. It operates within a temperature range of -55°C to 105°C and is rated for up to 1000V and 1.75A current. The design includes center slot polarization for accurate insertion and dual slot polarization for compatibility with other designs.
This shrouded PCB header is designed for reliable connections and ease of assembly. Its through-hole termination type ensures a secure connection to the PCB. The 3M 2500 series offers a low-profile, space-saving design, making it efficient for various electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch of the 3M 2540-6002RB PCB header is 2.54 mm.
The 3M 2540-6002RB PCB header has 40 contacts.
The operating temperature range for the 3M 2540-6002RB PCB header is -55°C to 105°C.
The voltage rating of the 3M 2540-6002RB PCB header is 1000V.
The current rating of the 3M 2540-6002RB PCB header is 1.75A.
