Mfr Part #:

2538-B22G00DBT

Name: 2538-B22G00DBT
Brand: Oupiin
SKU: 2538-B22G00DBT

Mfr Name: Oupiin

Description:

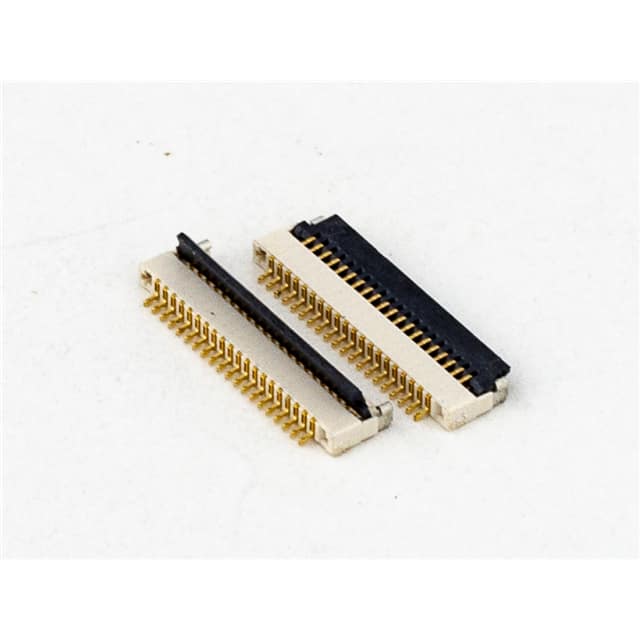

CONN FFC FPC 22POS 0.5MM R/A

Stock on Request

2538-B22G00DBT Description

Short technical summary and product information.

CONN FFC FPC 22POS 0.5MM R/A

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Name	Oupiin
Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Tapered
Connector	Contacts, Top and Bottom
Contact Finish	Gold
Contact Material	Phosphor Bronze
FFC, FCB Thickness	0.30mm
Features	Solder Retention
Flat Flex Type	FFC, FPC
Height Above Board	0.039" (1.00mm)
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	22
Operating Temperature	-55°C ~ 105°C
Pitch	0.020" (0.50mm)
Termination	Solder
