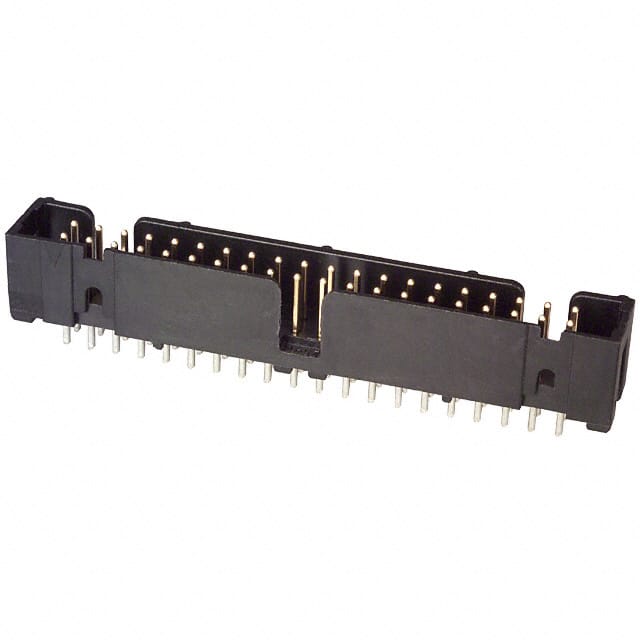

The 3M 2534-6002UB is a 34-position, 2-row, 2.54mm pitch header designed for board-to-board or cable applications. It features a shrouded 4-wall design for protection, with a push-pull fastening mechanism. The header is rated for a current of 1.75A and operates over a temperature range of -55°C to 105°C.
The connector is through-hole mounted with solder termination. It uses a PCT, polyester, glass-filled insulation material rated UL94 V-0, colored black. The contact material is copper alloy with a tin-lead finish (30µin thickness). The insulation height is 9.91mm and contact length is 2.84mm. The row spacing is 2.54mm matching the pitch.
This header is suitable for use in various electronic interconnects where reliable pin-and-socket connections are needed. The keying slot ensures proper orientation, and the shrouded design provides mechanical protection and prevents misalignment.
34 positions, all loaded, in 2 rows.
2.54mm (0.100 inch).
1.75A.
Through hole with solder termination.
-55°C to 105°C.
Polycyclohexylenedimethylene Terephthalate (PCT), polyester, glass filled, rated UL94 V-0.
Black.
