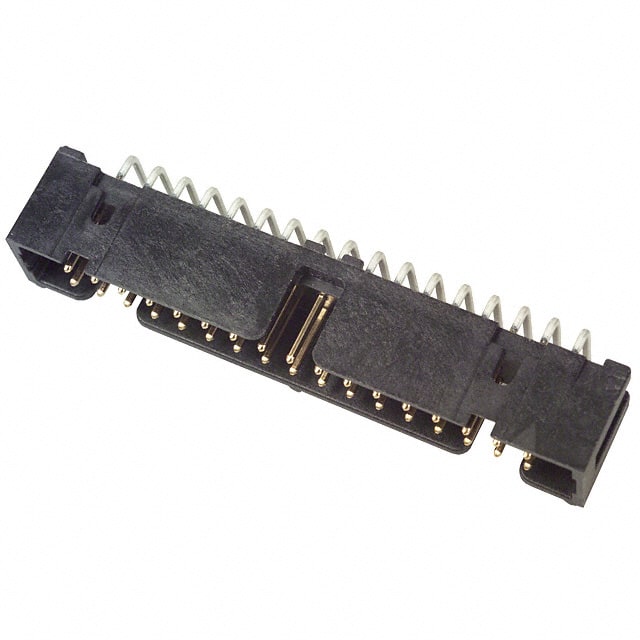

The 3M 2534-5002UB is a 34-position right angle male pin header designed for board-to-board or cable applications. It features a shrouded 4-wall design with a push-pull fastening type and a keying slot for polarization. The connector uses a 2.54mm pitch and 2.54mm row spacing, with square copper alloy contacts finished in 30.0 microinches of tin-lead. The insulation is black polycyclohexylenedimethylene terephthalate (PCT) polyester, glass filled, rated UL94 V-0. The header is rated for 1.75A current and operates from -55°C to 105°C. Mounting is through-hole right angle with solder termination.
| Qty | Low | High |
|---|---|---|
| 1,120+ | $2.64 | $2.64 |
| 2,520+ | $2.54 | $2.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 2534-5002UB has 34 positions, all loaded, in 2 rows.
The pitch is 2.54 mm (0.100 inches).
The current rating is 1.75 A.
The mounting type is through-hole, right angle.
The operating temperature range is -55°C to 105°C.
The contact finish is tin-lead with a thickness of 30.0 microinches (0.76 micrometers).
