| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
131 pcs
|
131 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

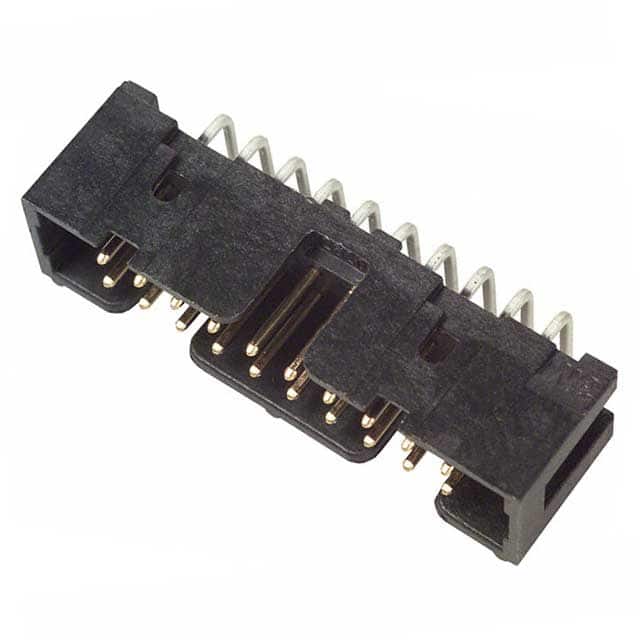

The 3M 2520-5002UG is a 20-position header connector with a 2.54mm pitch, designed for through hole right angle mounting. It features a shrouded 4-wall design that provides mechanical keying and protection for the male pins. The insulator is made of black glass-filled PCT (Polycyclohexylenedimethylene Terephthalate), offering a UL94 V-0 flammability rating.
The contacts are made of copper alloy with a tin-lead finish, rated for 1.75A continuous current. The connector supports board-to-board or cable-to-board applications and operates over a temperature range of -55°C to 105°C. The insulation height is 8.59mm, and the mating contact length is 2.84mm.
This header is suitable for industrial control systems, data communication equipment, and test and measurement devices. The 20 positions are arranged in two rows with a row spacing of 2.54mm, and all positions are loaded. The fastening type is push-pull, and the part includes a keying slot for alignment.
The connector has 20 positions in a 2-row configuration.
The pitch is 2.54mm (0.100 inches).
The current rating is 1.75A.
It uses through hole, right angle mounting with solder termination.
The operating temperature range is -55°C to 105°C.
The contact finish is tin-lead with a thickness of 15.0µin (0.38µm).
The insulator is made of black glass-filled PCT (Polycyclohexylenedimethylene Terephthalate), UL94 V-0 rated.
