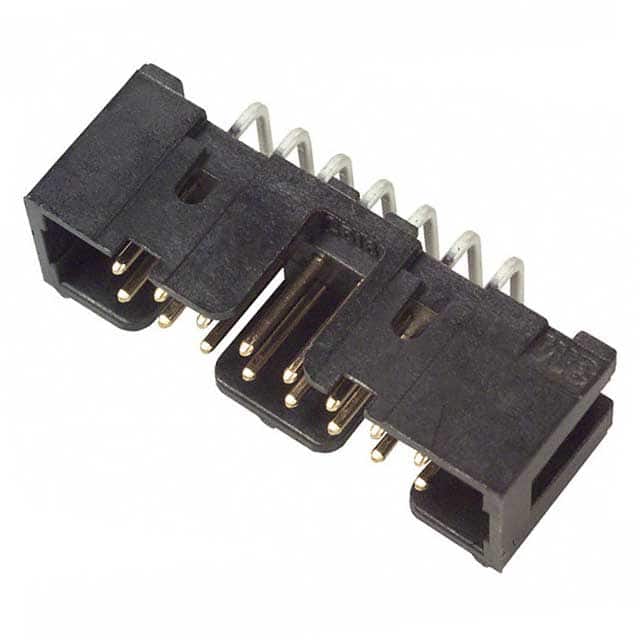

The 3M 2516-5003UB is a 16-position, 2-row, right-angle through-hole header with male pins on a 2.54mm pitch. This shrouded connector features a 4-wall design for polarization and keying slot for alignment. It is rated for 1.75A continuous current per pin and operates over a temperature range of -55°C to 105°C. The insulator is made of black glass-filled PCT (Polycyclohexylenedimethylene Terephthalate) with a UL94 V-0 flammability rating. The contacts are made of copper alloy with a tin-lead plating of 0.76µm thickness. The mounting type is through-hole, right-angle, with solder termination. The row spacing is 2.54mm, and the insulation height is 8.59mm. This connector is suitable for board-to-board or cable interconnections in industrial and commercial applications. The push-pull fastening type allows easy mating and unmating.
| Qty | Low | High |
|---|---|---|
| 1,120+ | $2.47 | $2.47 |
| 2,800+ | $2.30 | $2.30 |
| 5,040+ | $2.22 | $2.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions.
2.54mm.
1.75A.
Through-hole, right-angle.
-55°C to 105°C.
Polycyclohexylenedimethylene Terephthalate (PCT), glass filled.
Tin-Lead.
