| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Depth | |
| Length | |
| Terminal Type |

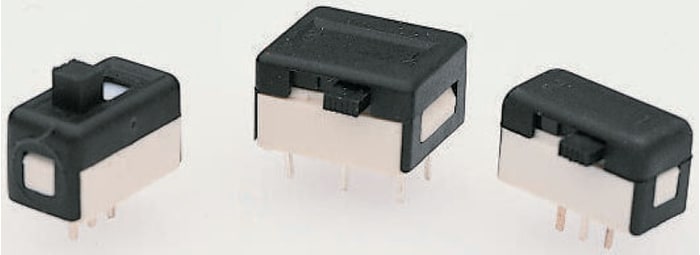

The APEM 25146NLDH is a miniature PCB slide switch from the 25000N series. It features a Double Pole Double Throw (DPDT) contact configuration with latching operation. The switch is designed for through-hole mounting and has a maximum DC voltage rating of 30V.
With a mechanical life of 20,000 operations and an electrical life of 10,000 cycles, this switch is built for durability. The actuator is made from fibreglass reinforced polyamide, and the case is constructed from PBT high-temperature thermoplastic, ensuring reliability in various environments. The operating temperature range is from -40°C to 85°C.
Key specifications include a length of 14.1mm and a depth of 8.1mm. The terminals are sealed to prevent flux ingress during soldering. This switch is suitable for applications requiring reliable switching in a compact form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.71 | $4.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The APEM 25146NLDH has a DPDT (Double Pole Double Throw) contact configuration.
The 25146NLDH features latching switch operation.
The maximum DC voltage rating for the APEM 25146NLDH is 30V dc.
The APEM 25146NLDH is designed for PCB mounting with through-hole terminals.
The mechanical life of the APEM 25146NLDH is 20,000 operations.
The APEM 25146NLDH can operate between -40°C and 85°C.
The actuator of the APEM 25146NLDH is made from fibreglass reinforced polyamide.
