| Category | |
| Manufacturer Name | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Impedance @ Frequency | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Width |

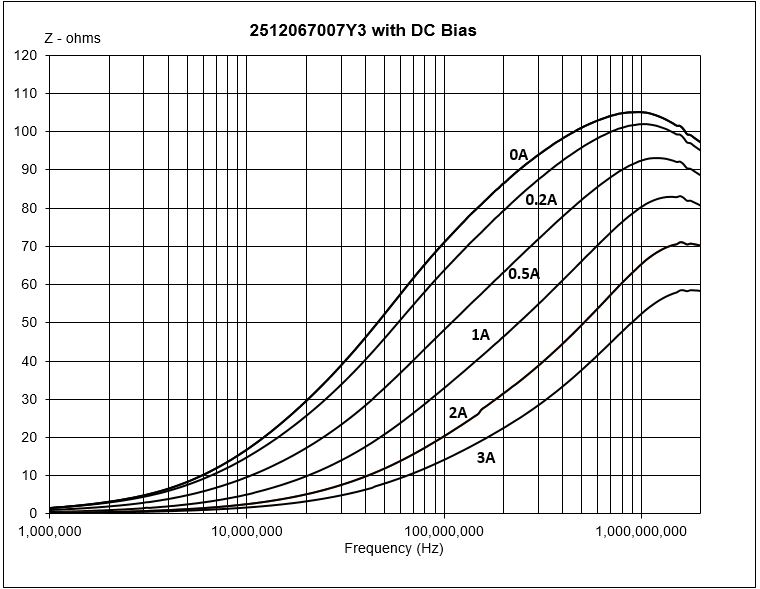

The Fair-Rite 2512067007Y3 is a single-line ferrite bead designed for signal line filtering. It offers 70 Ω impedance at 100 MHz with a maximum current rating of 3A and a low DC resistance of 40 mΩ. The component operates over a wide temperature range from -55°C to 125°C. Housed in a standard 1206 (3216 Metric) surface mount package, it measures 3.20mm x 1.60mm with a maximum height of 1.30mm. This ferrite bead is suitable for EMI suppression and signal integrity applications in power and signal lines where high current handling is required. The surface mount configuration allows for automated assembly, making it ideal for high-volume production.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
| 10+ | $0.13 | $0.13 |
| 25+ | $0.11 | $0.11 |
| 50+ | $0.10 | $0.10 |
| 100+ | $0.09 | $0.09 |
| 250+ | $0.08 | $0.08 |
| 500+ | $0.07 | $0.07 |
| 1,000+ | $0.05 | $0.05 |
| 3,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
70 Ω at 100 MHz.
3A maximum.
40 mΩ maximum.
1206 (3216 Metric).
-55°C to 125°C.
Yes, RoHS3 compliant (unverified).
1 line.
