| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Lead Style | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Supplier Device Package | |
| Tolerance | |
| Width |

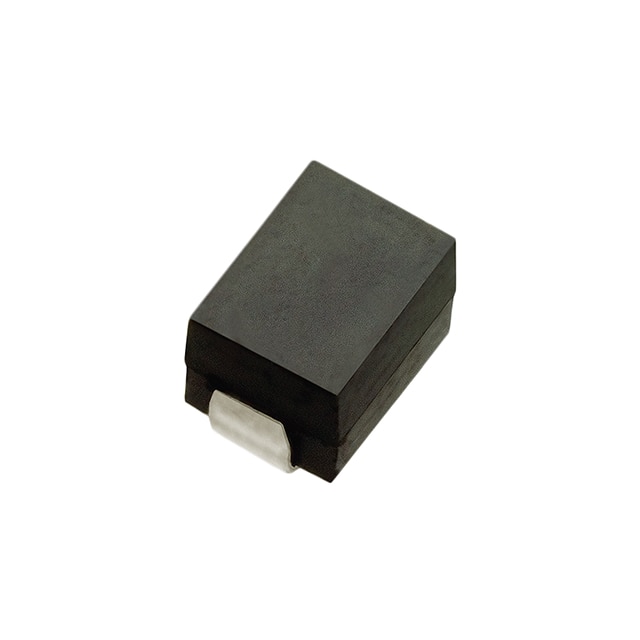

The API Delevan 2512-102K is a fixed inductor designed for surface mount applications. It offers an inductance of 1 µH with a tolerance of ±10%. The inductor is rated for a continuous current of 1.64A and has a maximum DC resistance of 150mOhm, ensuring efficient power handling.
Constructed with a ferrite core and unshielded design, this inductor is suitable for general-purpose power supply filtering, DC-DC converters, and other low-frequency applications. The unshielded construction minimizes electromagnetic interference in appropriate circuits.
The component is housed in a 2-SMD J-Lead package measuring 6.22mm x 2.41mm with a height of 2.79mm. It is rated for operation over a wide temperature range of -55°C to 125°C, making it suitable for harsh environments.
This inductor is a direct replacement for the API Delevan 2512 series and is available with a Digi-Key part number 2512-102K-ND. It is commonly used in power management, industrial electronics, and automotive systems.
1 µH with ±10% tolerance.
1.64A continuous.
150mOhm maximum.
2-SMD, J-Lead.
-55°C to 125°C.
No, it is unshielded.
Ferrite.
