| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
341 pcs
|
341 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
319 pcs
|
319 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

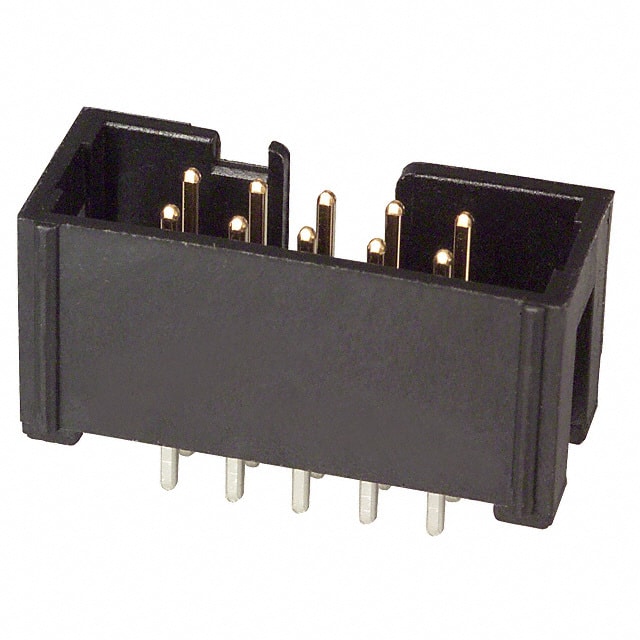

The 3M 2510-6002UB is a 10-position, dual-row rectangular header with male pins arranged on a 2.54mm pitch. It features a shrouded 4-wall design for mating alignment and keying slot for polarization. The connector supports board-to-board or cable styles and uses through-hole solder termination.
Electrical rating is 1.75A per contact. The insulator is black glass-filled PCT/polyester with UL94 V-0 flammability rating. Contacts are copper alloy with tin-lead plating (30µin). Operating temperature range is -55°C to 105°C. Row spacing is 2.54mm and contact length is 2.84mm.
It has 10 positions, all loaded, arranged in 2 rows.
The pitch is 2.54mm (0.100") and the row spacing is also 2.54mm (0.100").
The current rating is 1.75A per contact.
It is a through hole mounting connector with solder termination.
The operating temperature range is -55°C to 105°C.
The insulation is black glass-filled PCT/polyester with UL94 V-0 flammability rating.
