| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,722 pcs
|
3722 pcs | On Request | 1 | On Request | On Request | 2038+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Impedance @ Frequency | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Width |

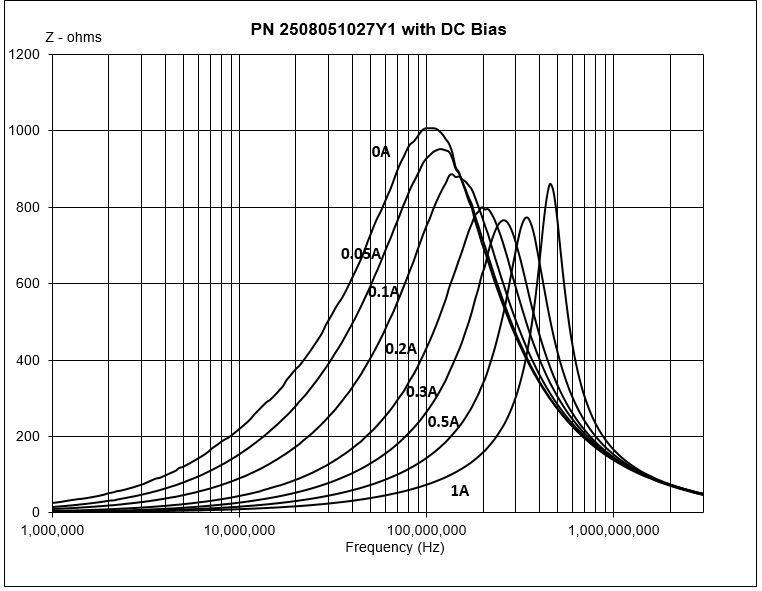

The Fair-Rite 2508051027Y1 is a single-line ferrite bead designed for signal line filtering applications. It offers a nominal impedance of 1 kΩ at 100 MHz, providing effective suppression of high-frequency noise. The component is rated for a maximum DC current of 1 A and has a maximum DC resistance of 300 mΩ, ensuring minimal power loss in the circuit.
This ferrite bead is housed in a standard 0805 (2012 metric) surface mount package, with dimensions of 2.00 mm x 1.25 mm and a maximum height of 1.10 mm. It is suitable for automated assembly processes and is compatible with reflow soldering.
The device operates over a wide temperature range of -55°C to +125°C, making it suitable for use in harsh environments. It is compliant with RoHS3 and REACH directives, and has an MSL rating of Level 1 (unlimited floor life).
Typical applications include noise filtering in power lines, signal lines, and data lines in consumer electronics, telecommunications equipment, and industrial control systems. The ferrite bead's high impedance at high frequencies helps to attenuate electromagnetic interference (EMI) without significantly affecting the desired signal.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.11 | $0.11 |
| 10+ | $0.08 | $0.08 |
| 25+ | $0.06 | $0.06 |
| 100+ | $0.06 | $0.06 |
| 250+ | $0.05 | $0.05 |
| 500+ | $0.04 | $0.04 |
| 1,000+ | $0.04 | $0.04 |
| 4,000+ | $0.03 | $0.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal impedance is 1 kΩ at 100 MHz.
The maximum DC resistance is 300 mΩ.
The maximum current rating is 1 A.
The package is 0805 (2012 metric).
The operating temperature range is -55°C to +125°C.
Yes, it is listed as RoHS3 compliant.
Surface mount.
